RV-7 N890GF

I got back to the hangar and continued working on the few remaining FWF tasks I have left.

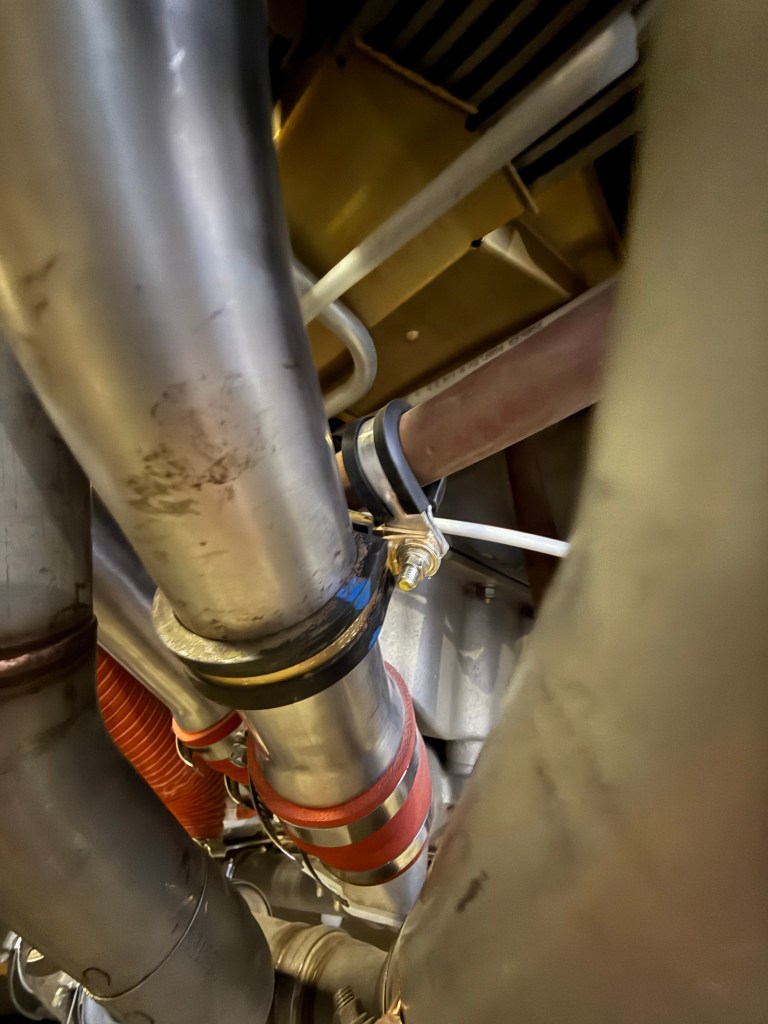

I added additional Adel Clamps to support the alternator blast tube.

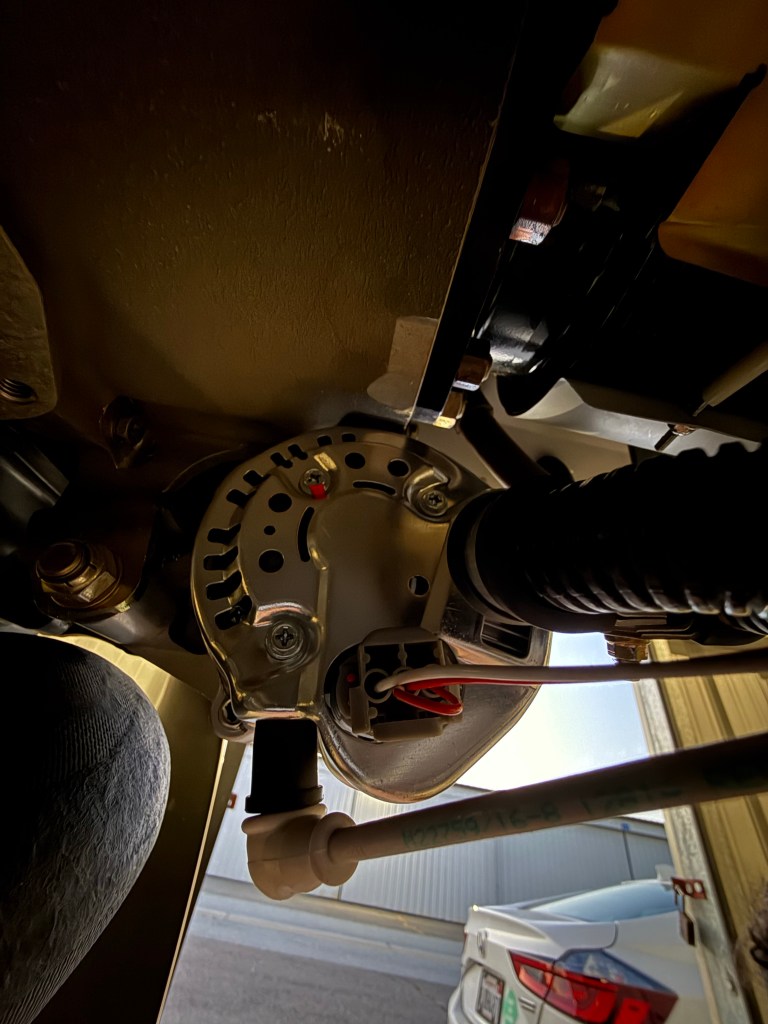

Here is another view of the aft of the alternator showing the blast tube aimed at the cooling fan intake.

The oil line is also supported on the intake tube.

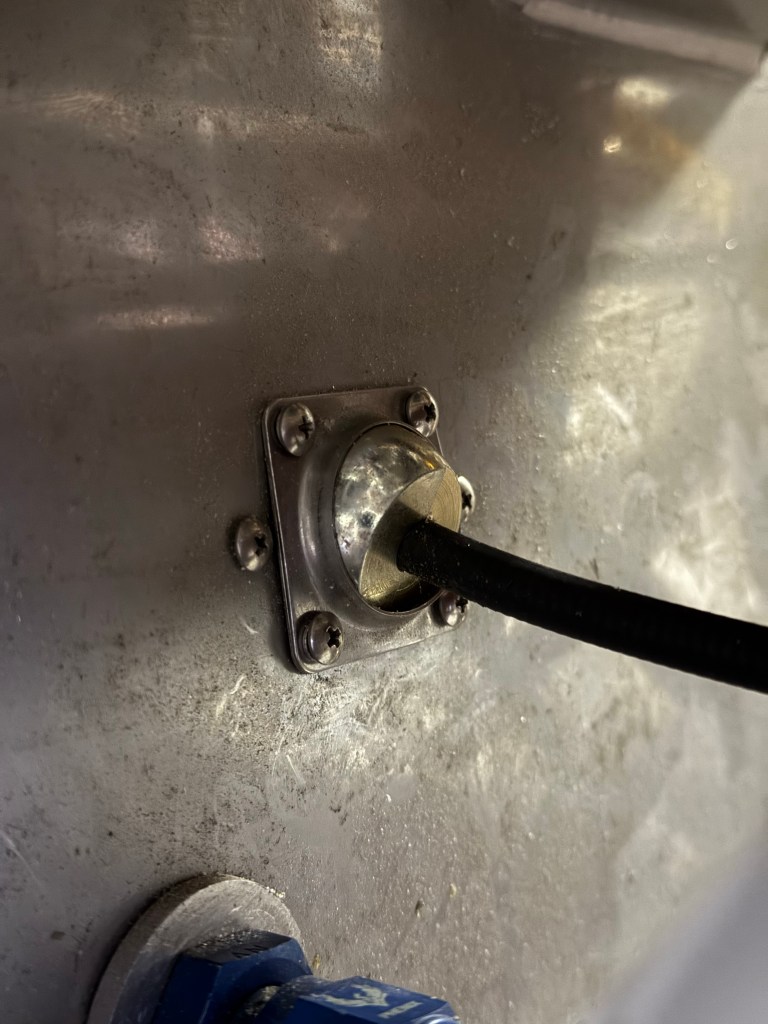

When I had my head buried under the engine, I realized I never installed the throttle cable eyeball for the firewall passthrough when I installed the prop and mixture ones. So I installed it.

There are still a couple remaining things to clean up, including installing the battery and top spark plugs.
