Firewall Prep

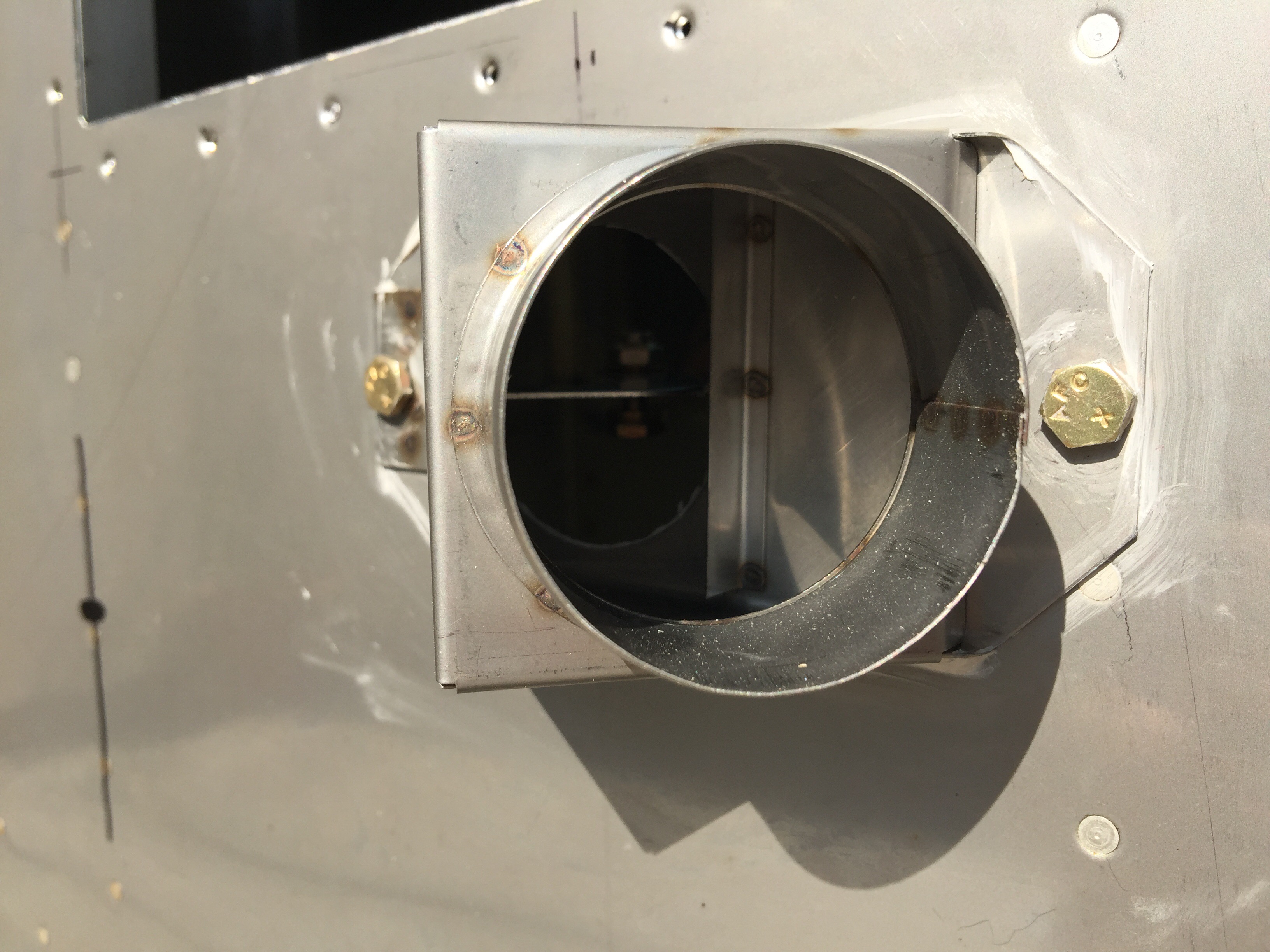

Yesterday I spent several hours installing a bunch of firewall components. I started by drilling a 2″ hole for the stainless steel heater box. I then positioned it and drilled the two holes for mounting.

It came with a tube of firewall sealant, I lined the underside and then bolted it in place.

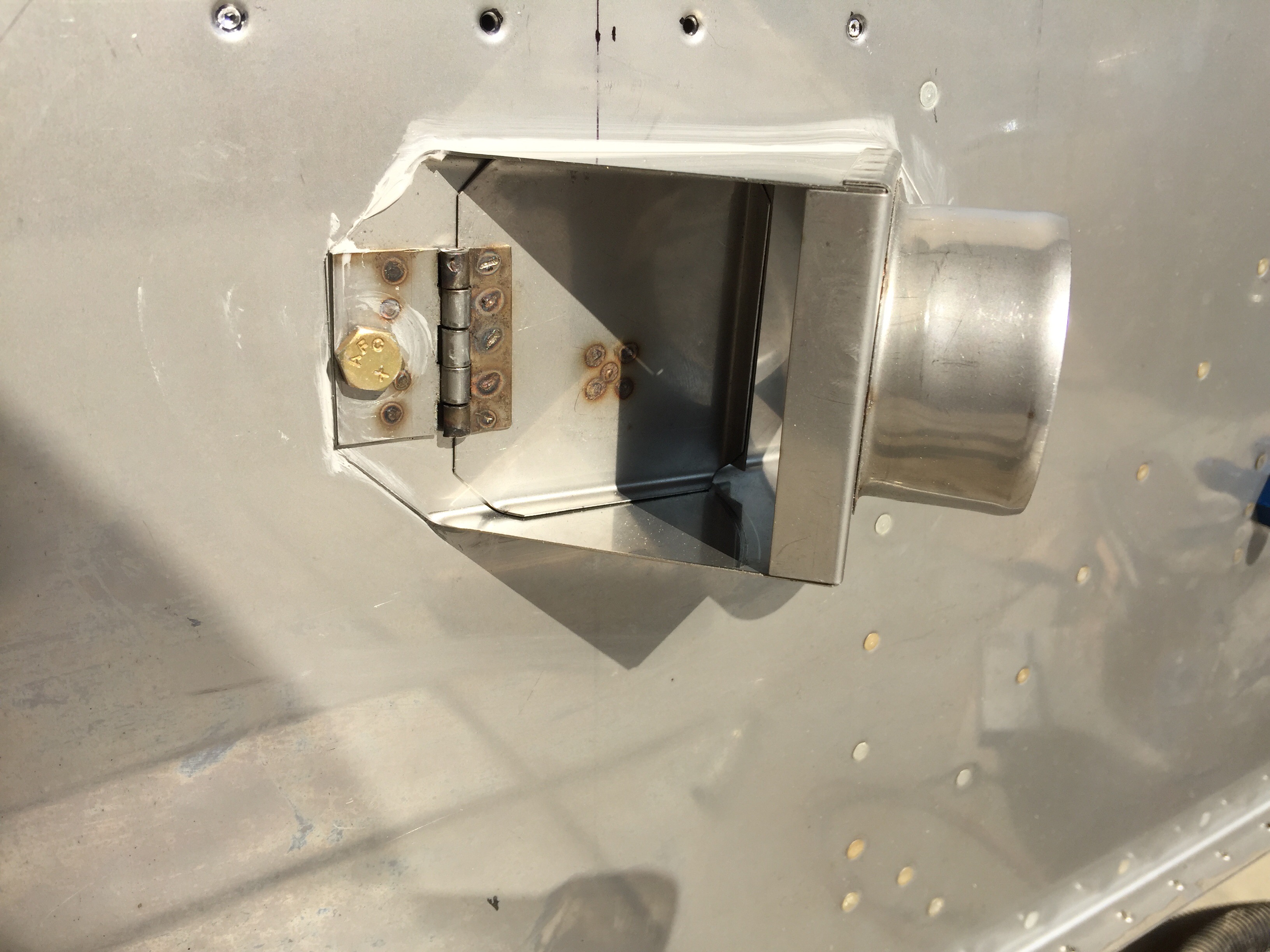

A tube will attach to this end and a heat muff surrounding the exhaust on the other.

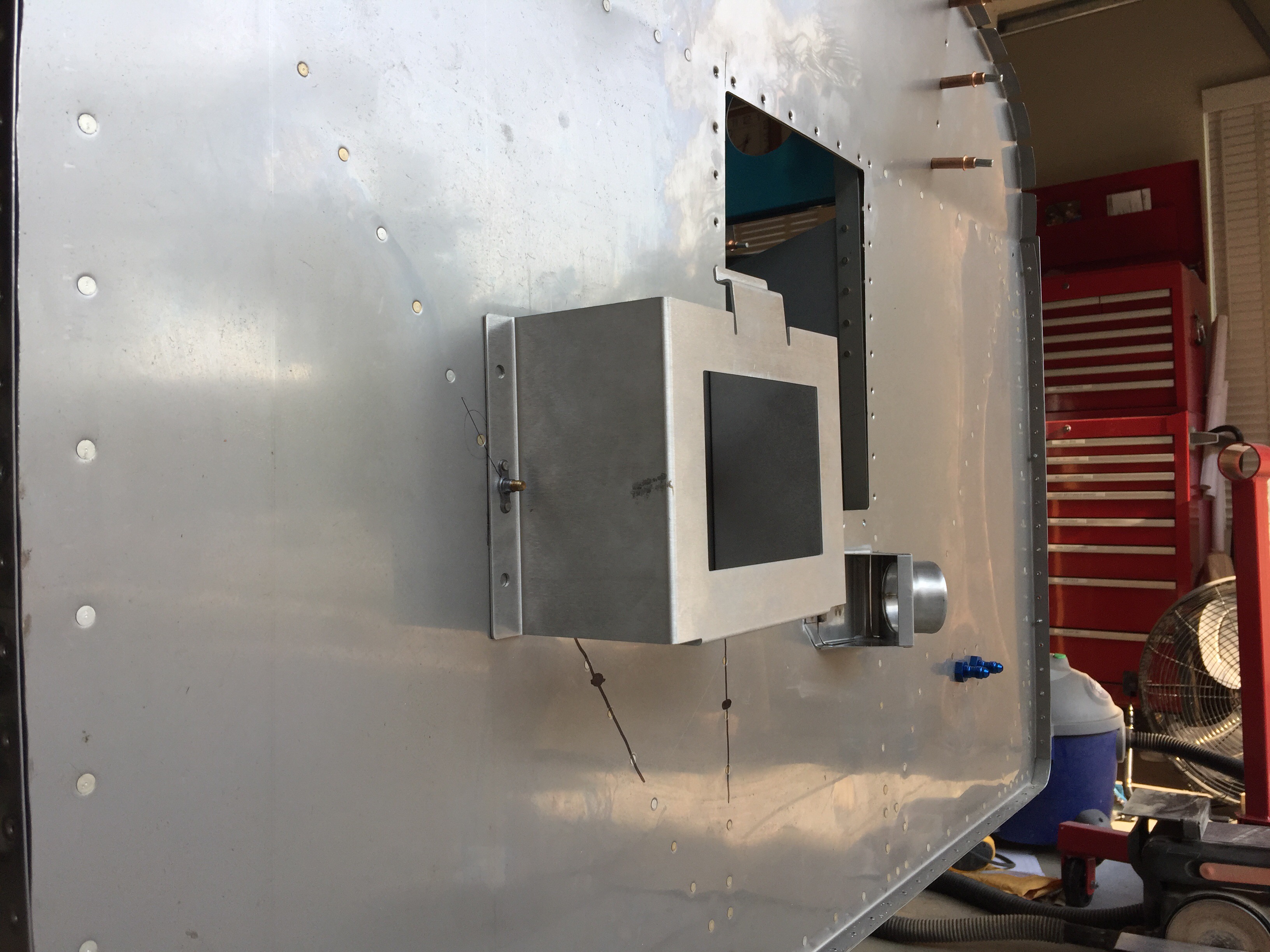

I then began measuring and lining up the battery tray. I’m going with an EarthX lithium battery.

This is mounted using three bolts from the inside of the firewall. I also installed my vent line ports. These are some fancy aerodynamic covers that I got from JD Air. They require a 5/8th hole and mount from the inside.

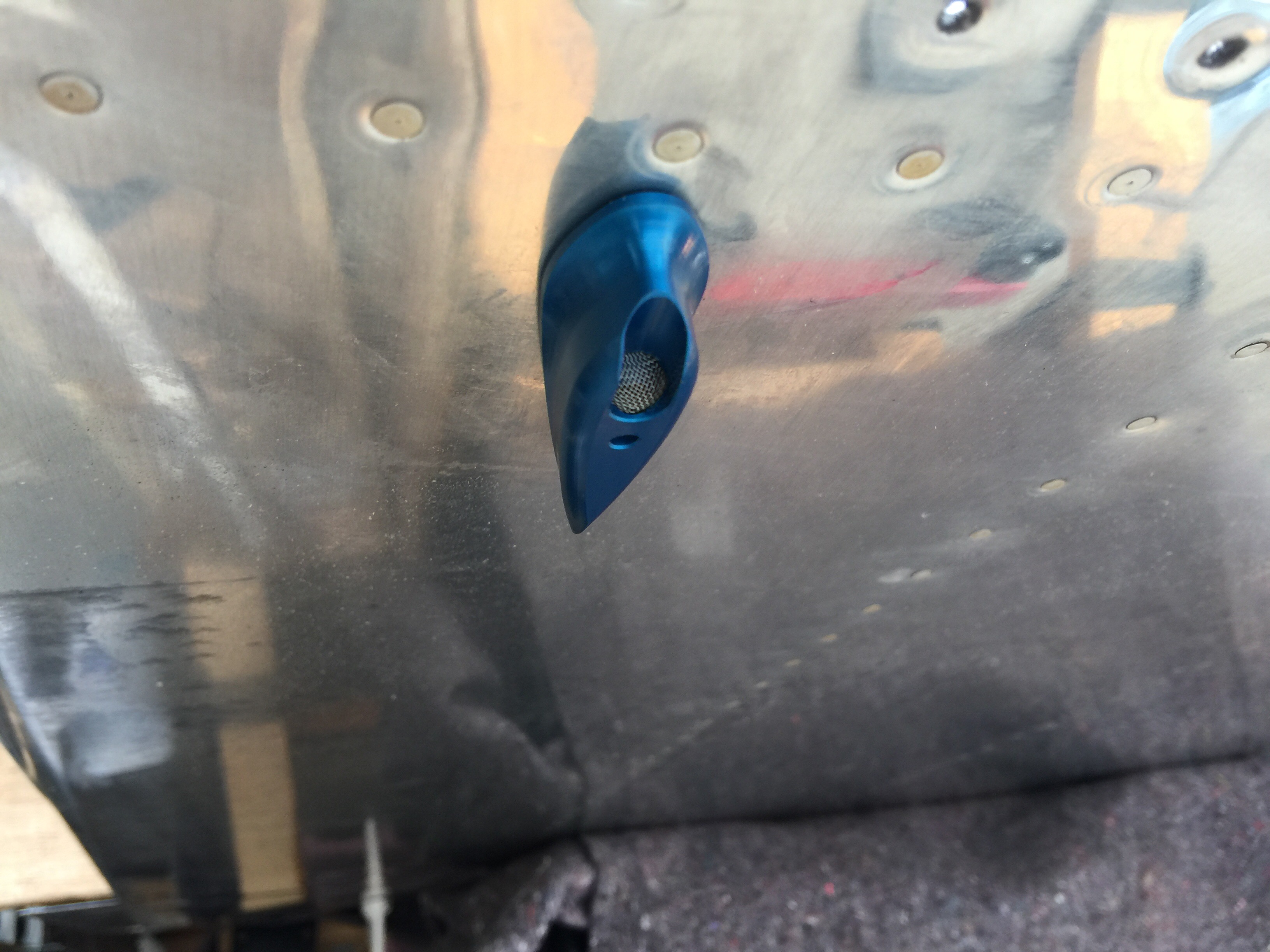

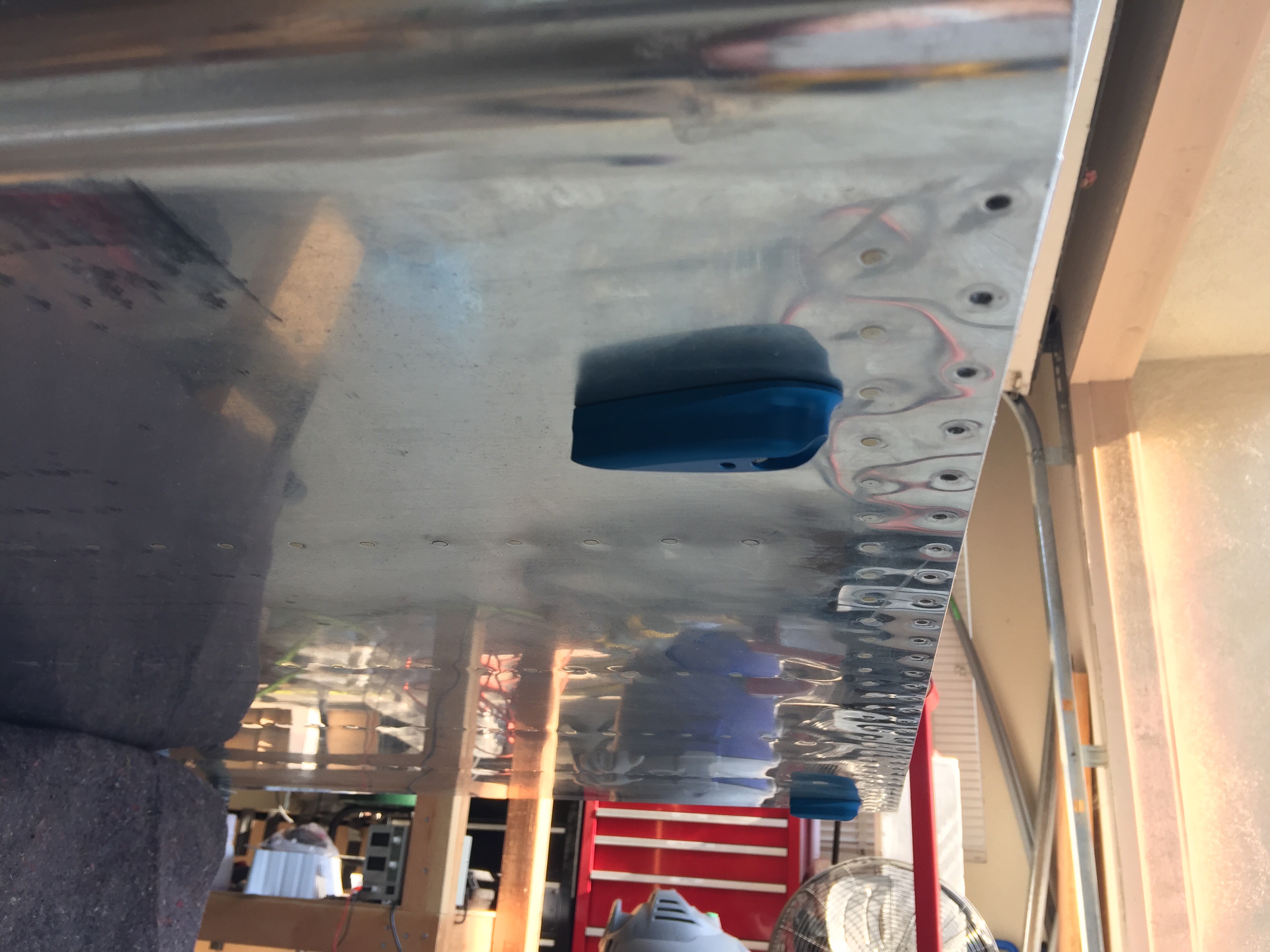

Here are the two vents installed.

I then installed the brake reservoir. It’s mounted on the passenger side in case I want to add copilot brakes later on.

The hydraulic low pressure line attaches to the inside of this reservoir.

Lastly I installed the master relay and starter relay. This took some work mainly due to the slightly different battery case. I had to drop the pair down a bit lower than the standard installation spot.

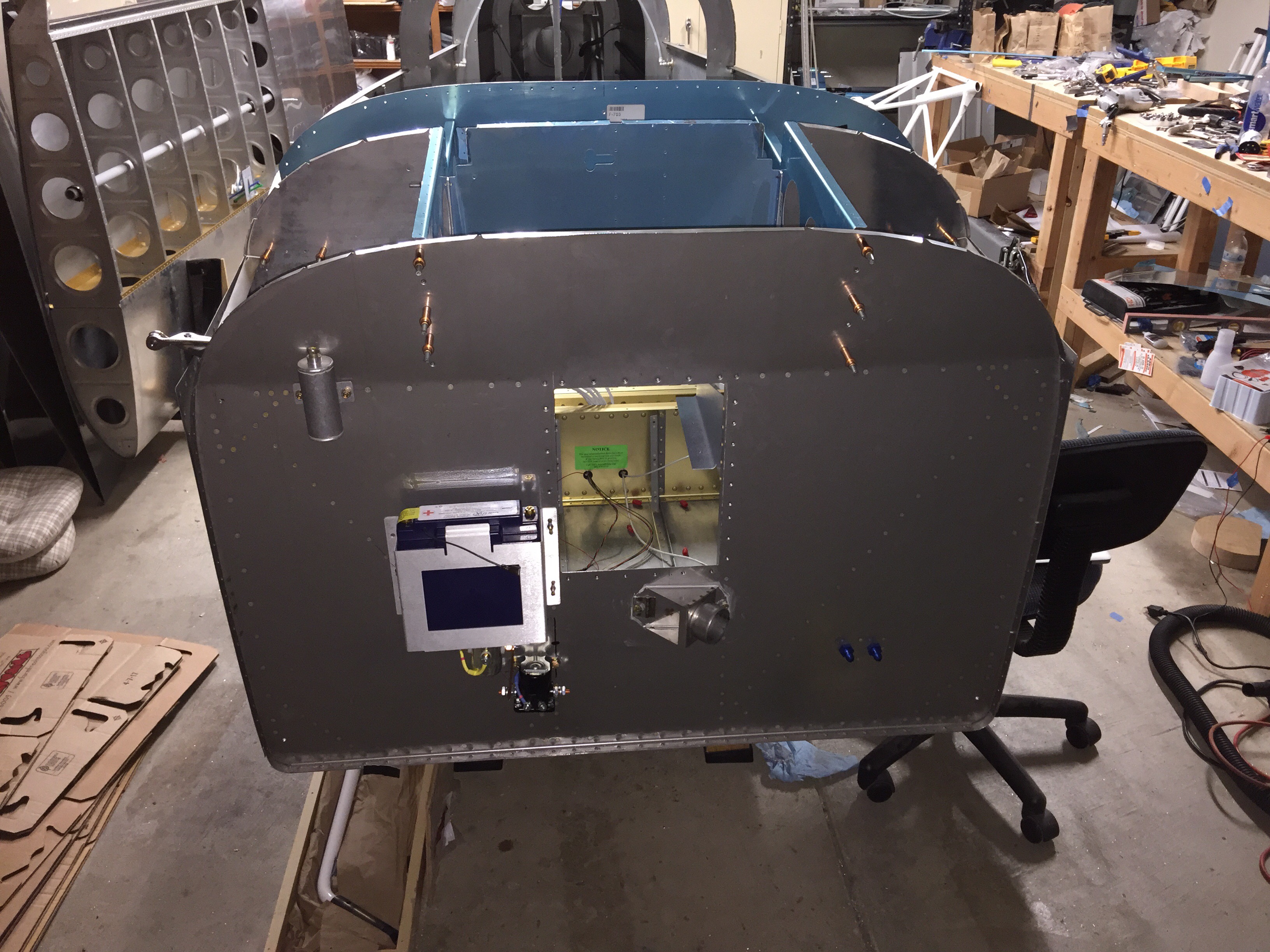

Here’s everything installled on the firewall. You can see the relays just below the battery.

Next up, firewalls recess, then the engine mount.
