Canopy frame

Today I spent some time working on the canopy frame side rails and ribs.

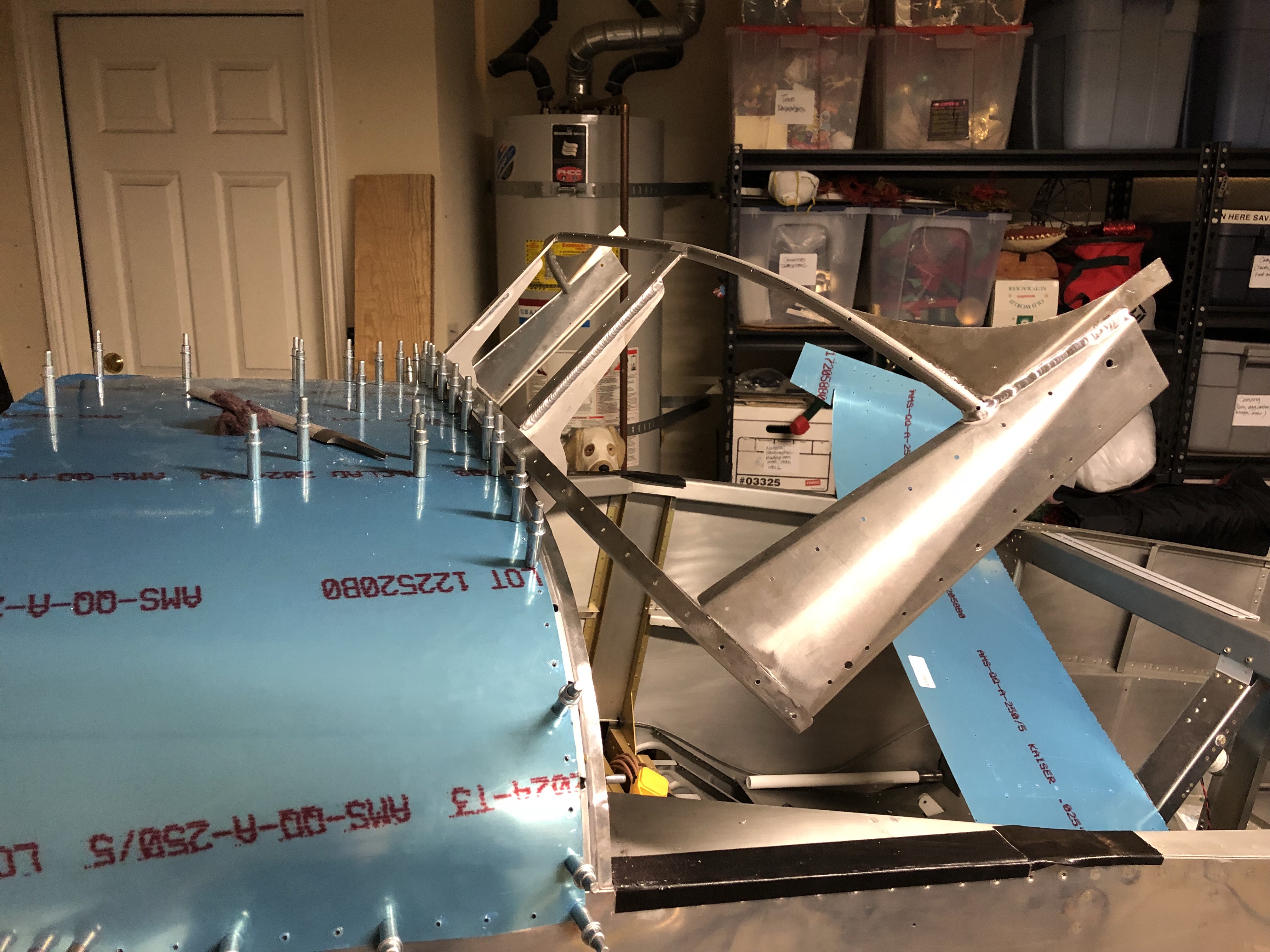

Here’s the frame attached and pivoted forward to check the clearance. I then got the side frame pieces out and prepped those, along with the attach brackets for the frame.

Here you can see the side frame drilled and clecoed to the rib

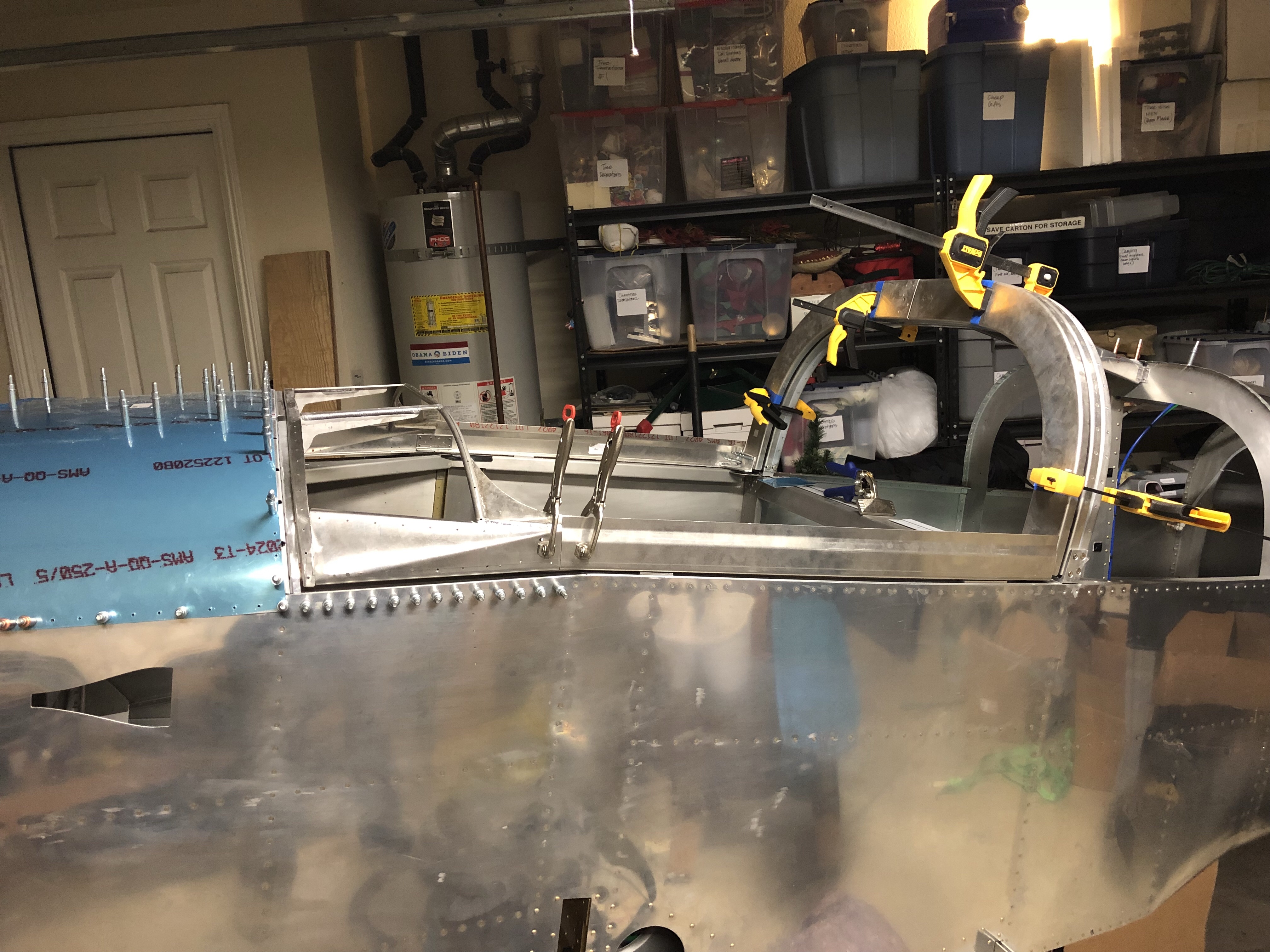

And here is the side frame attached to the forward frame.

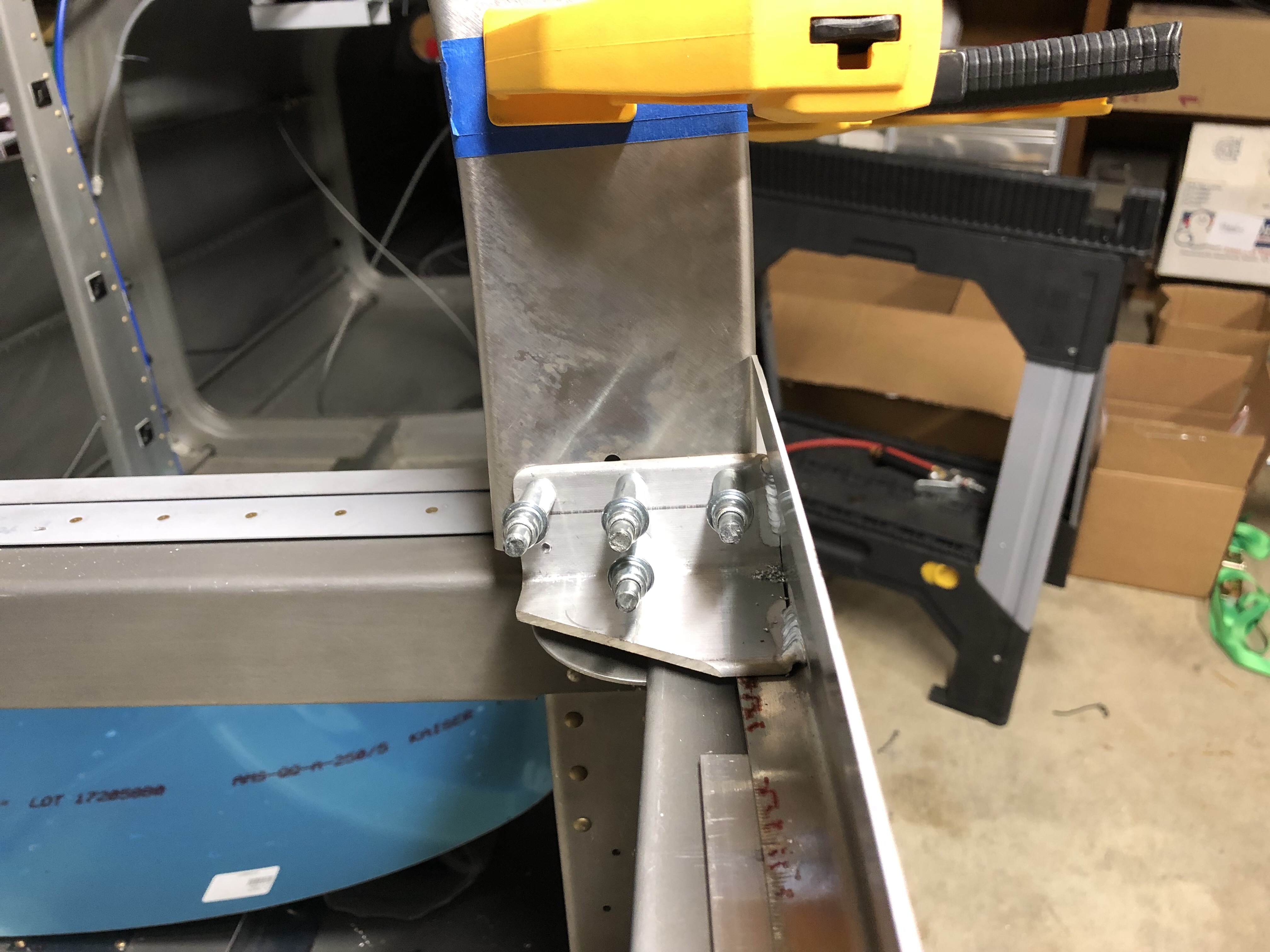

I then drilled the side brackets to both pieces.

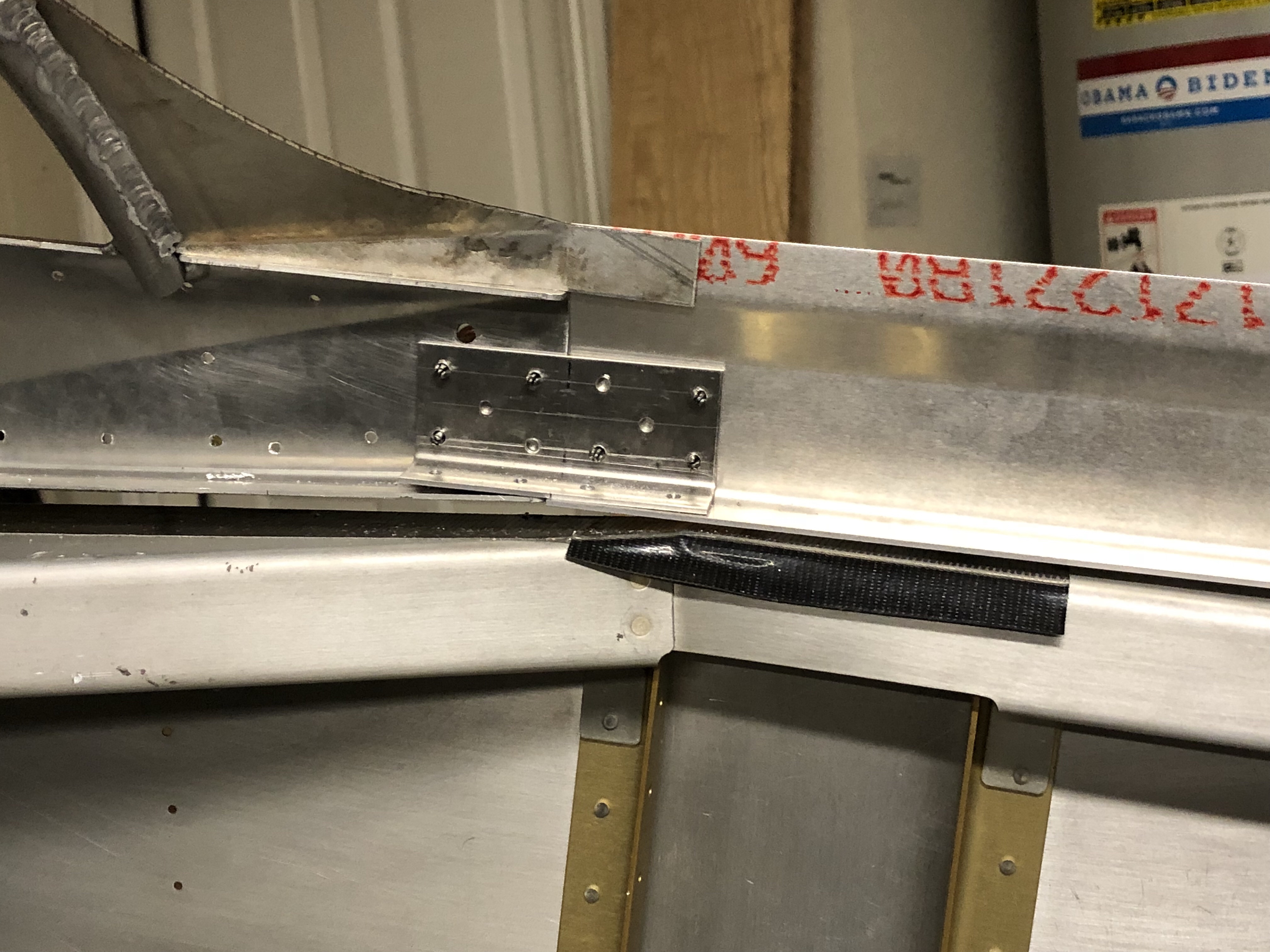

The gap you see between the splice bracket and the frame on the left will be filled with a wedge.

This looks so cool!
