Baffle and pushrods

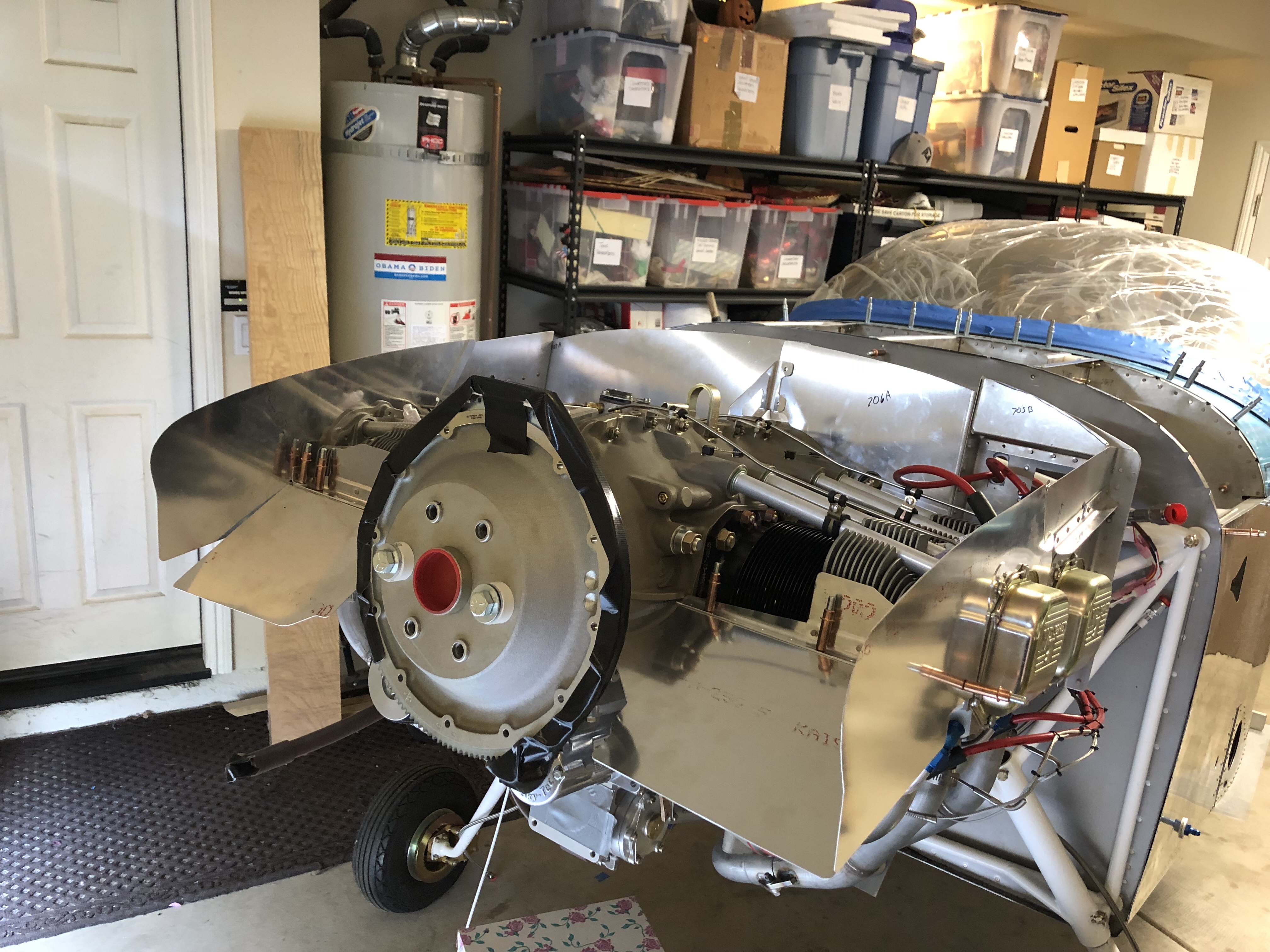

This weekend I spent a few hours continuing the work on the baffle. This primarily was focused on the baffle fit around the valve cover gaskets. I had the parts on and off several times to remove more material and then check the fit.

I then spent time on the inlet ramps.

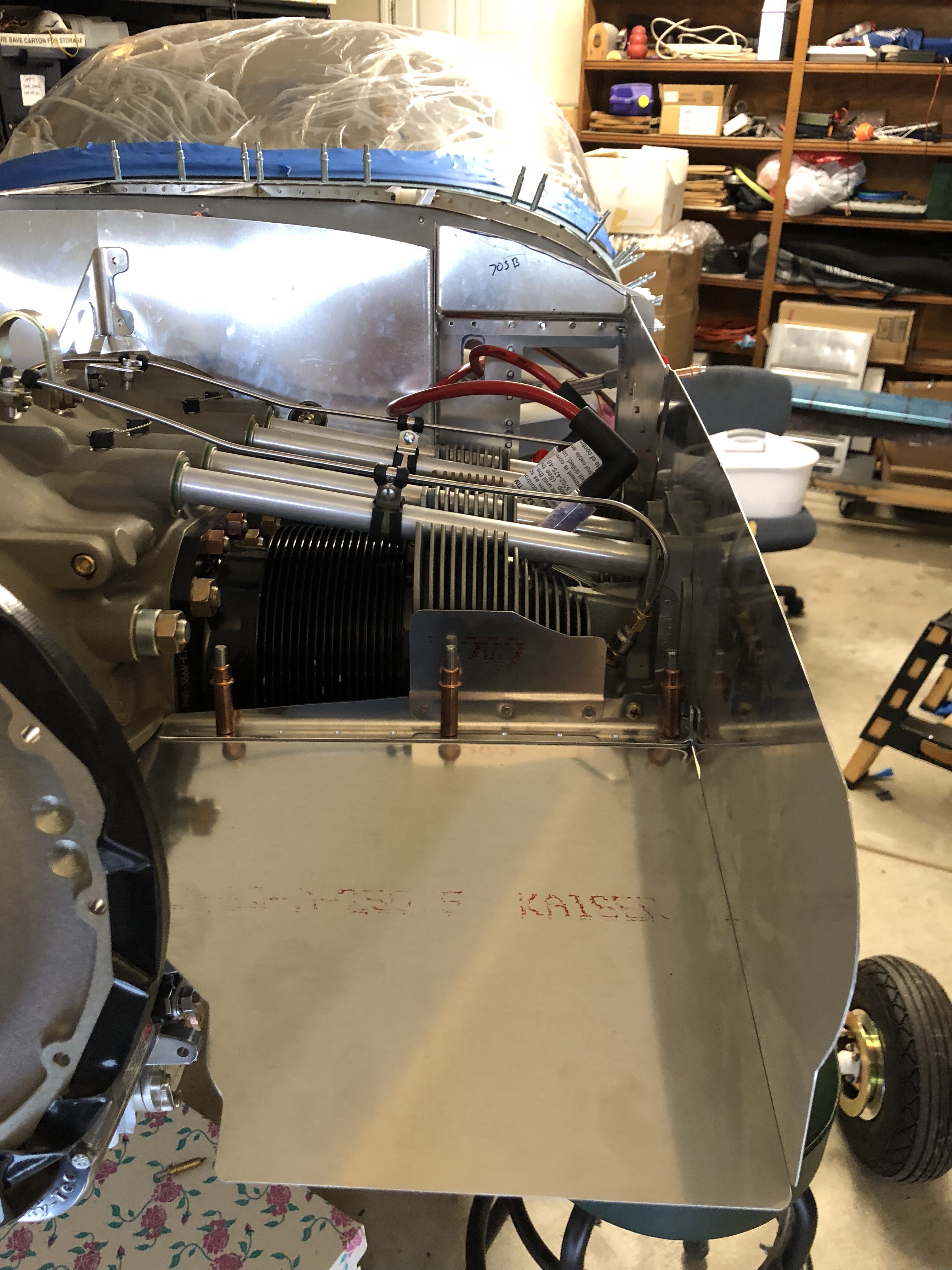

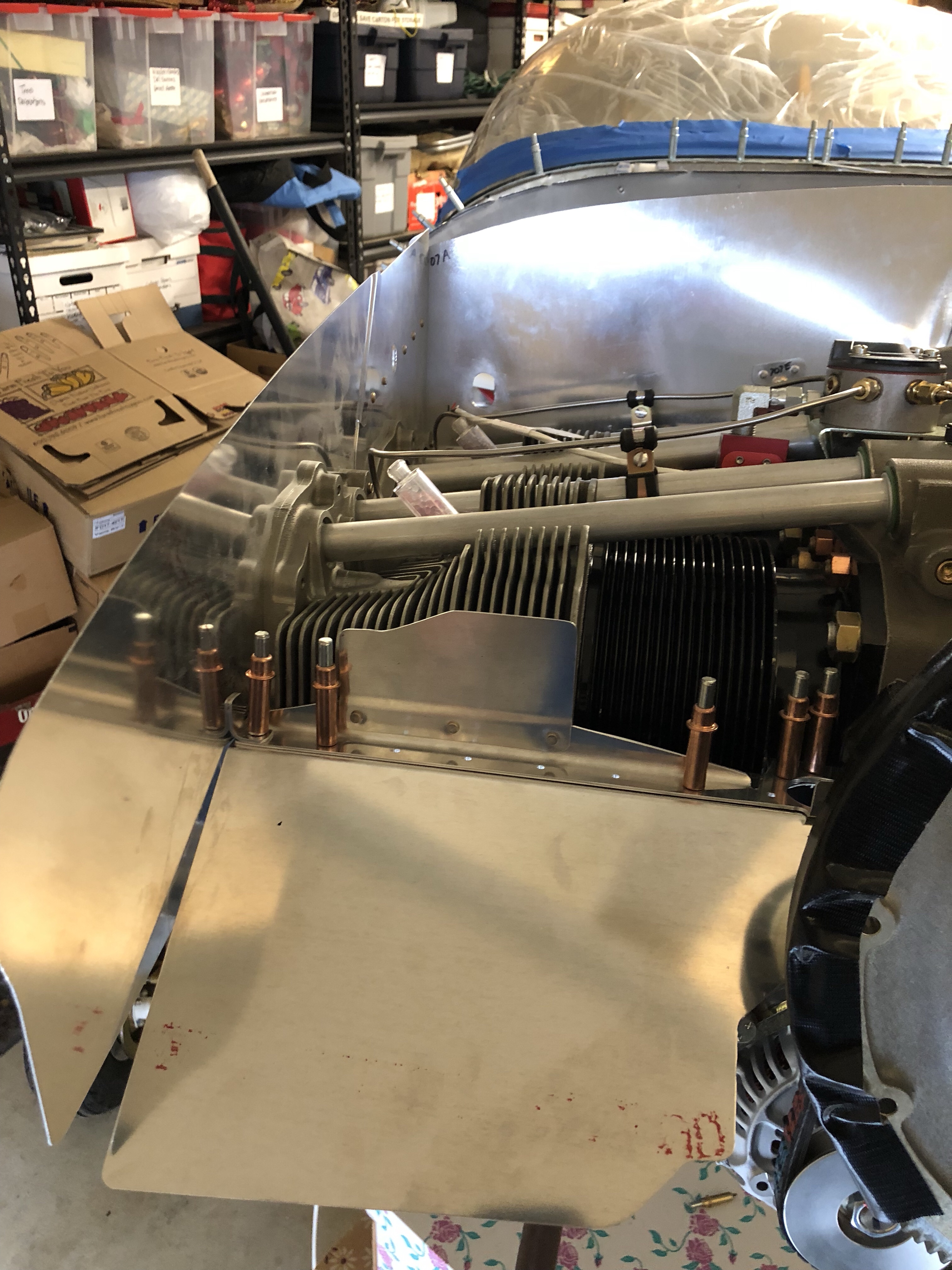

Here you can see the left and right inlet ramps. The left ramp (cylinder 2) will also have the intake filter. This piece will get modified to accept the filter as well as the snorkel that routes air down and to the air intake on the engine.

Just to give myself a change of pace, I spent some time making the remaining two pushrods. The elevator pushrods consist of a smaller rod that attaches the control sticks to the elevator bellcrank, and then from the bellcrank back to the elevators.

On a side note, my interior from Classic Aero Desings arrived! I’m going with a full custom interior using the Sportsman2 side panels and Aviator seats. They are absolutely perfect and look SO good!

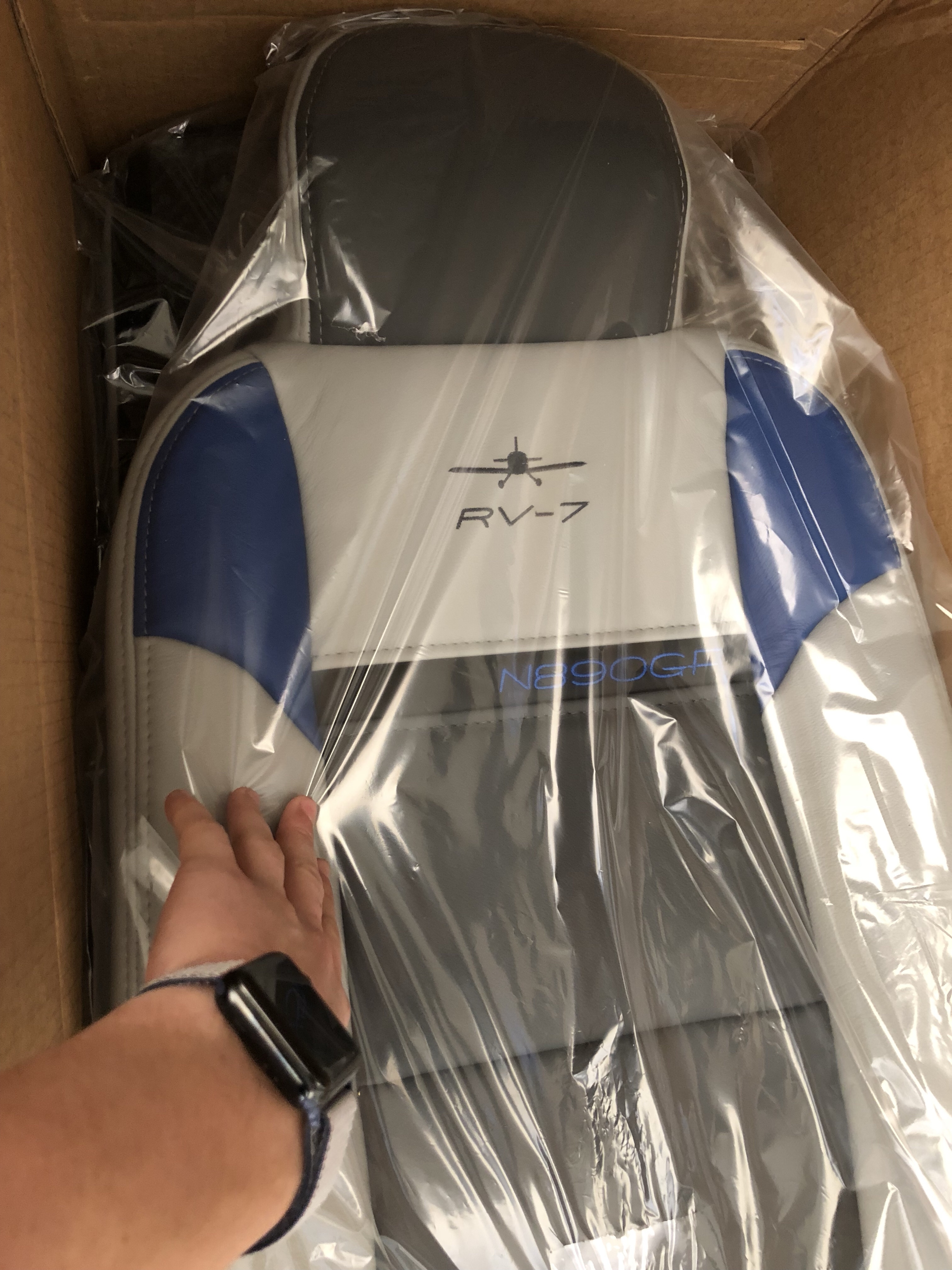

I’m not quite ready to install them just yet, but here’s a sneak peak at one of the seats.

Baffle and pushrods
