I’ve been working over the last several months on the panel layout and design. I’ve gone through a few iterations and I’ve finally settled on a design.

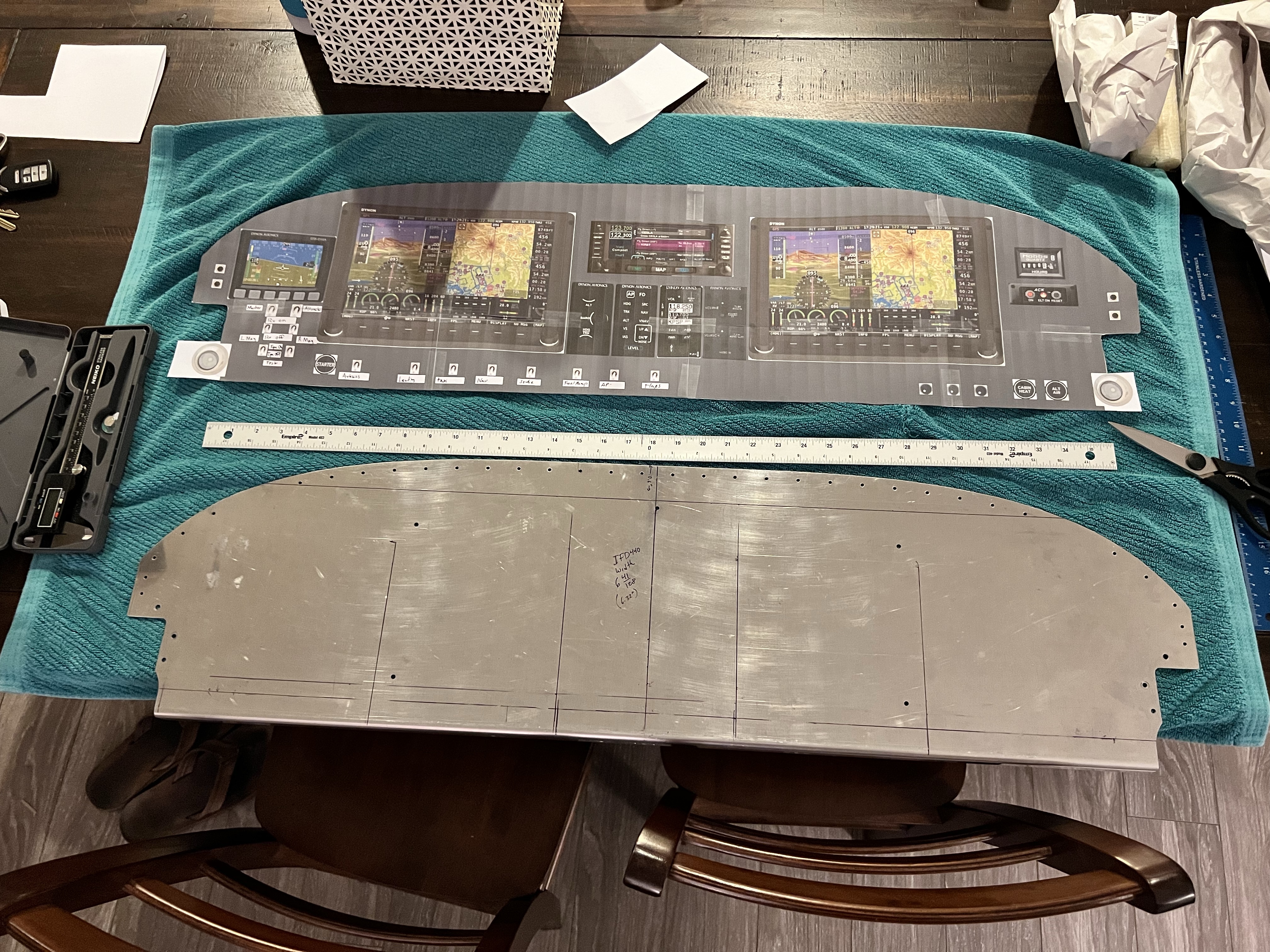

I have a full size rendering of the panel so that I can visualize it as I do the detailed measurements. I have the entire thing measured out in CAD as well for the cutouts. The actual panel currently has a few reference lines marked on it for pilot/copilot centerlines, panel centerline, 1.5” ref line from the top, and finally 1” & 2” ref lines from the bottom.

Next update in a few days will have the complete panel marked and ready for cutting!
