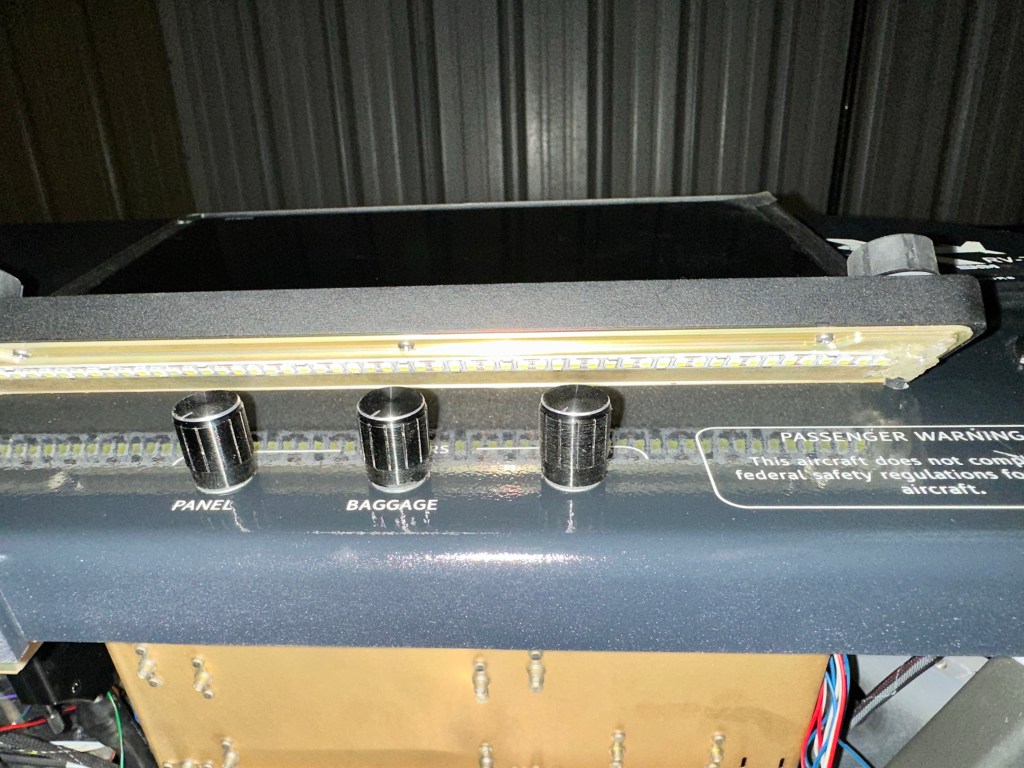

With the Dynon HDX screens having an angled shelf for the buttons, my panel lighting (along the canopy deck) casts a shadow onto my switches and labels. I decided to install additional LED lights under the shelf to illuminate this area along side the rest of the panel.
In doing this installation I also decided to install an accessory (auxiliary) bus for several different components. Right now they are Panel Lighting, Bluetooth Receiver, CO monitor (may update this one), and USB power ports. I utilized a slim fuse block that has 8 slots, and I wired it up to a 15A pin on the VPX. It’s not currently wired up to a switch, but can be switched on/off via the VPX controls on the EFIS.
I also spent some time updating the routing of ground wires to the ground block. I also finished wiring the fuel pump connector and center tunnel mounting hardware and covers.
RV-7 N890GF
