RV-7 N890GF

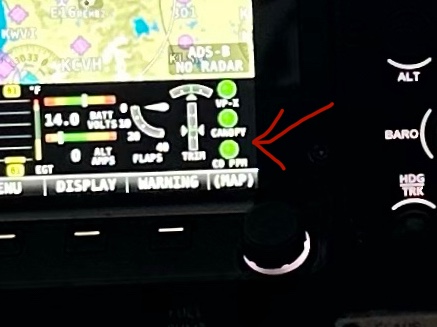

I finished installing my Aithre CO monitor and wired up the signal wire to an EGPIO pin on the Dynon EMS. This allows me to configure and see CO status on the EFIS and have colored regions for different levels of CO. Aithre makes it really easy with a file that can be downloaded and saved onto the Dynon which then configures the EMS to display a CO PPM (parts per million) value on the display.

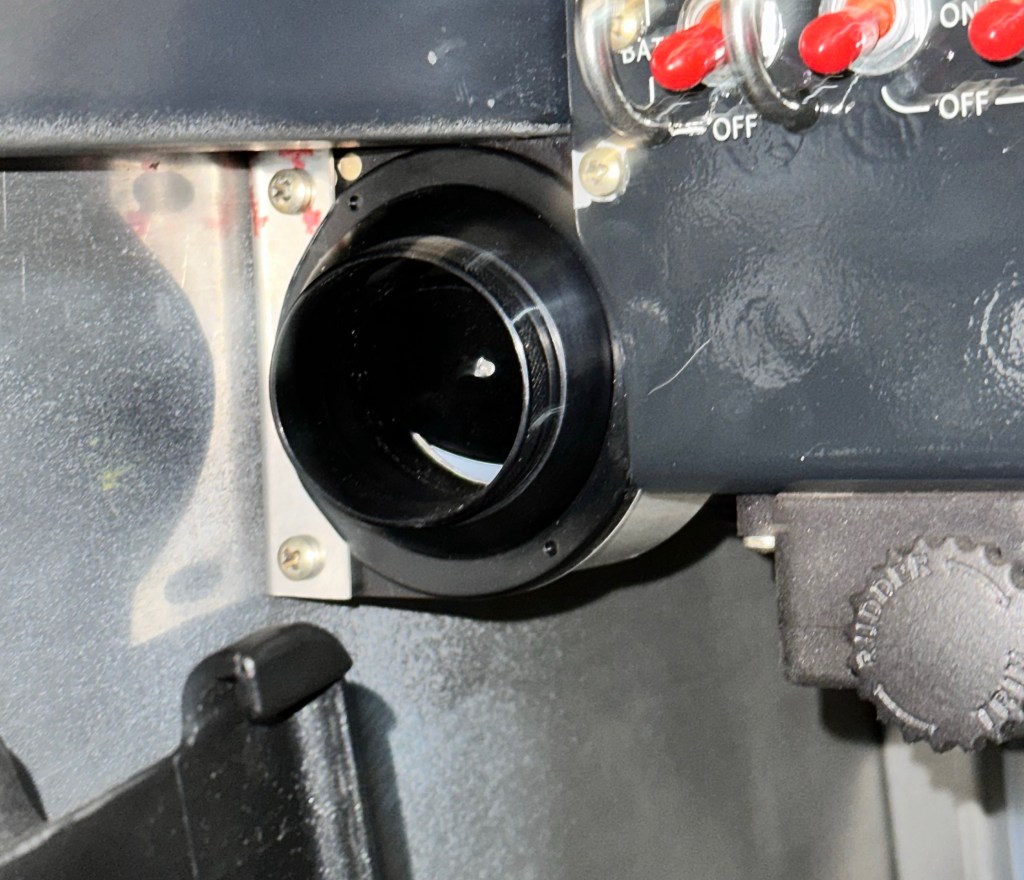

I also spent some time fabricating and installing the air vents onto the panel. This was a bit tricky as I’m utilizing the larger Stein Air air vents. Still some additional finishing work to clean up the install, but the intakes and vents are complete!
