Switches

Today I worked on the switches for the panel. I have 6 switches dedicated to the primary power and engine ignition.

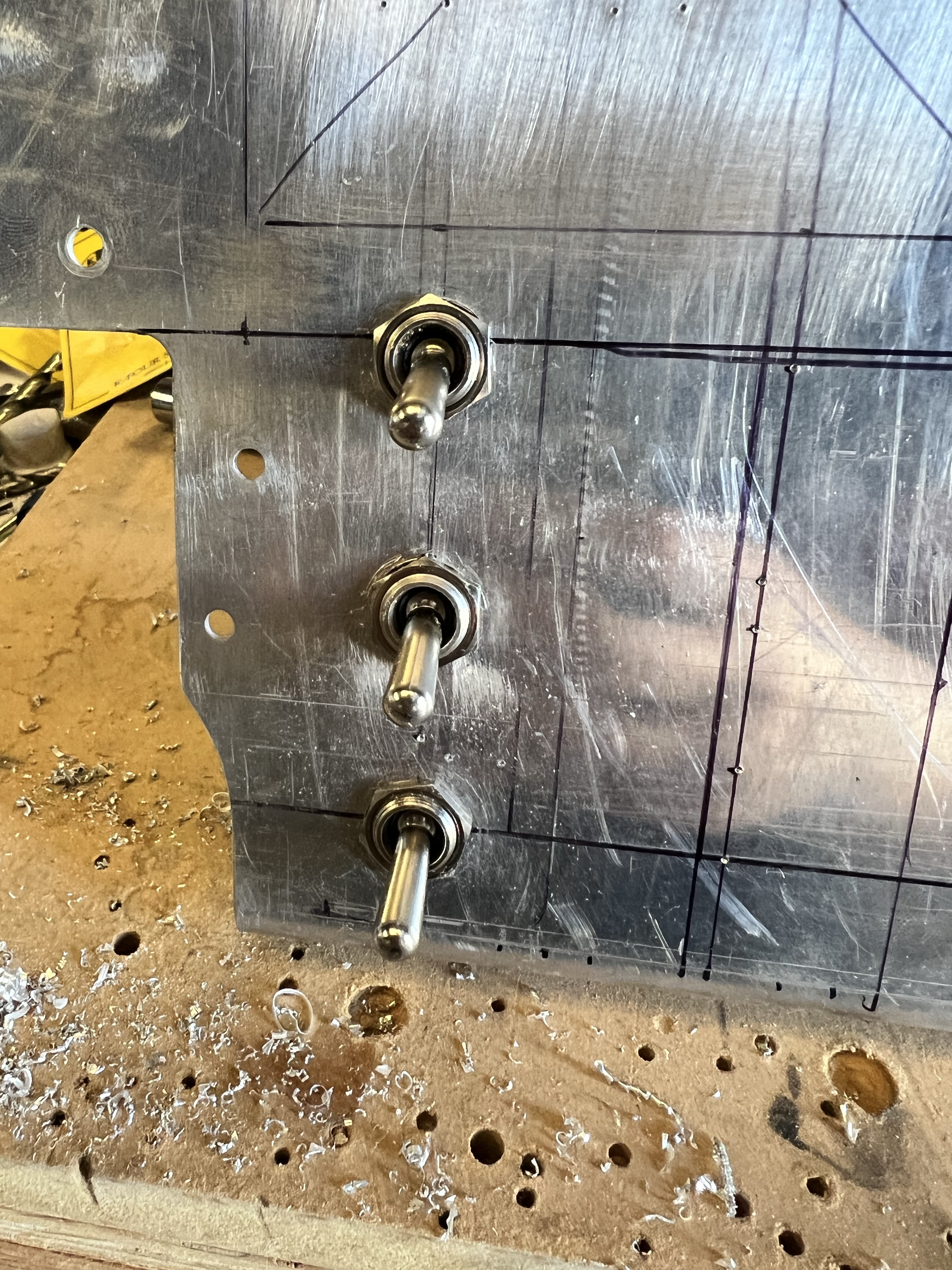

Here the top left is the master switch, and below is the L PMag ignition power and test switches. The PMag ignitions have a built-in generator that kicks in above 800 RPM. The test switch allows you to ensure the ignition will continue running when power is removed.

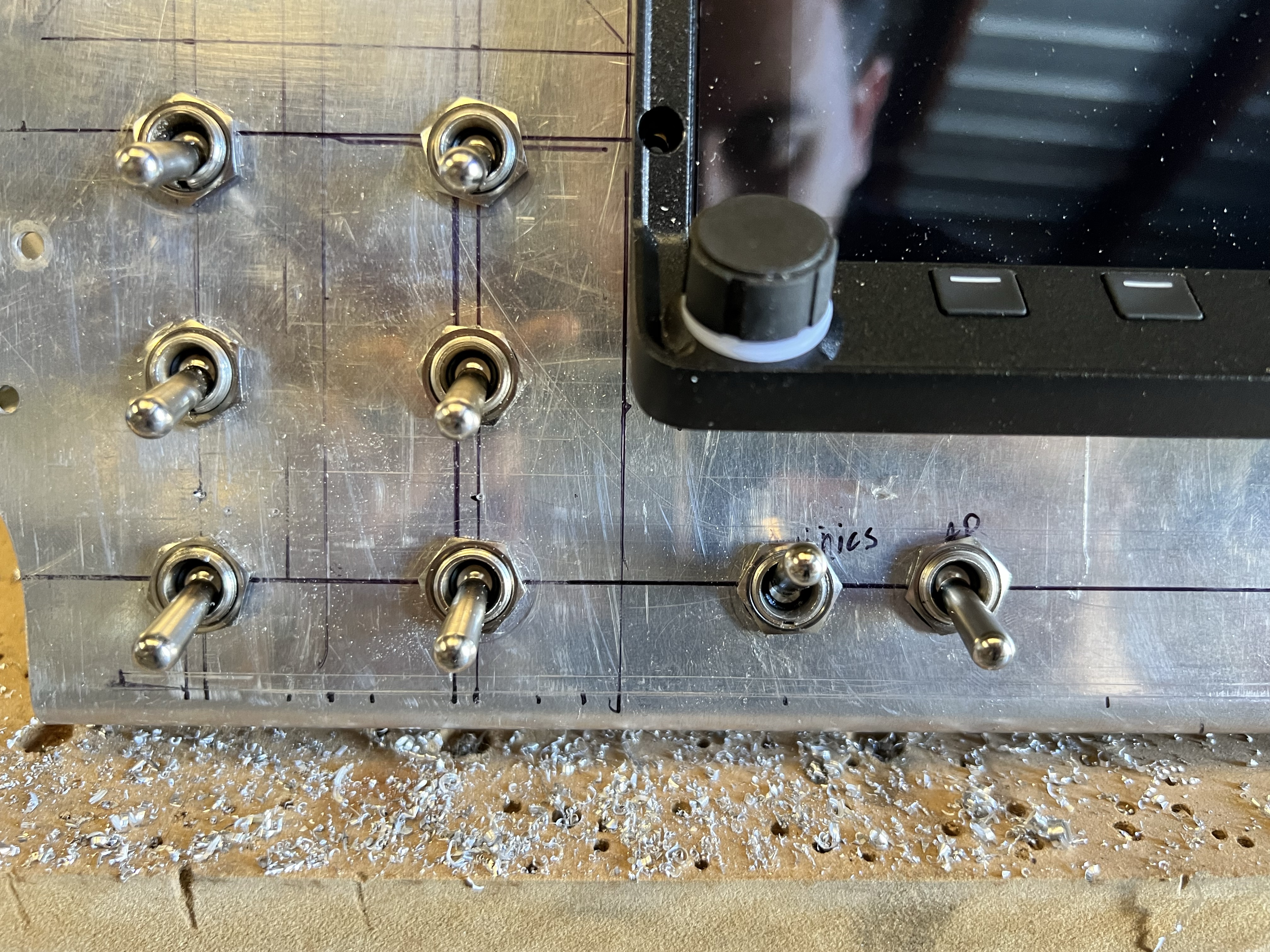

I installed the remaining ignition switches, along with the Alternator enable switch next to the master switch. Then I installed the two switches below the display to ensure they are easy to use and are not inhibited by the angled part of the HDX screen. These are the Avionics and Auto Pilot switches.

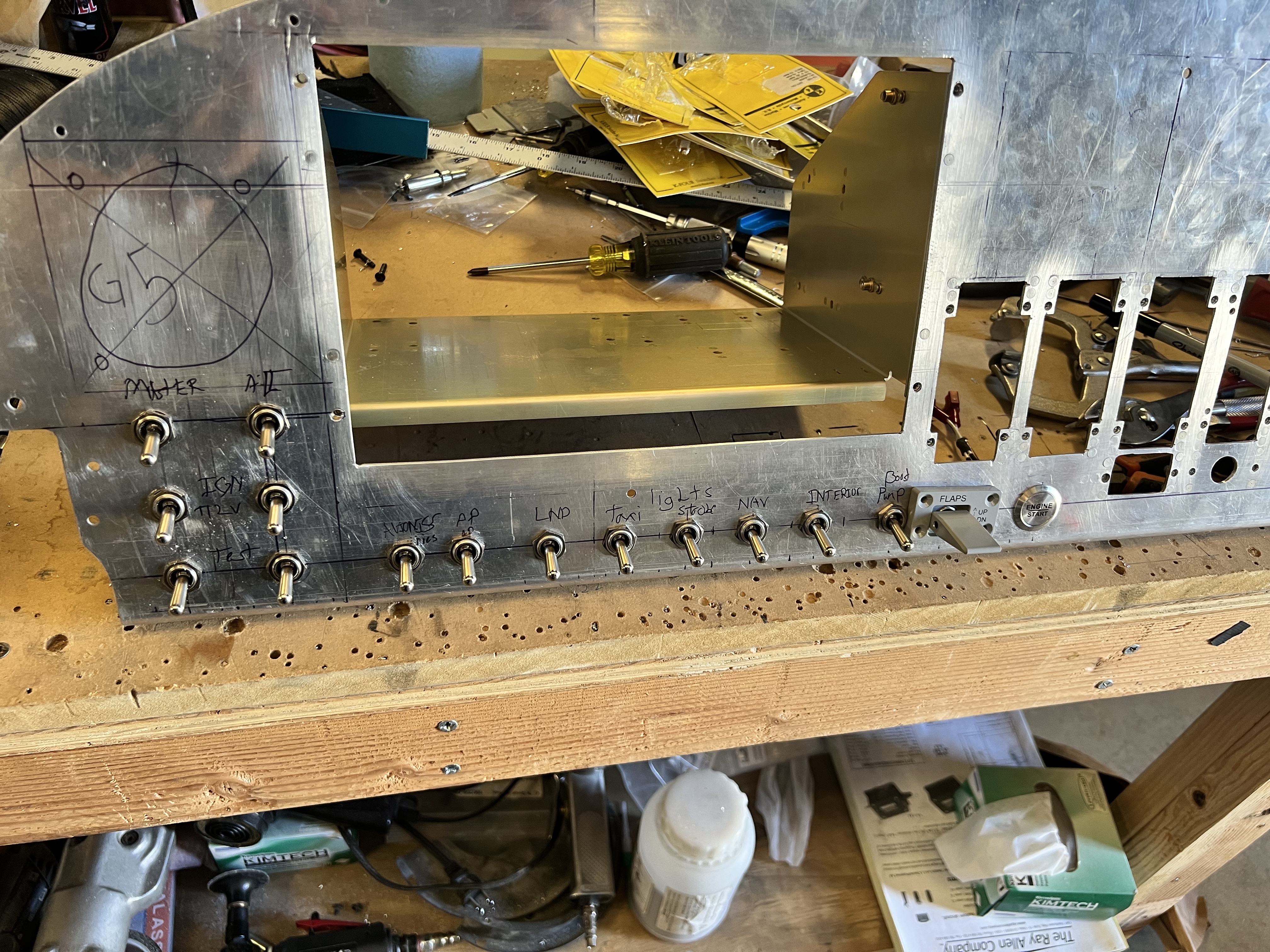

Here are all the remaining switches installed. There are five switches under the display for the aircraft lights. This includes landing, taxi, strobe and nav lights, along with interior lighting. The three far right switch are the fuel pump, flaps, and engine start.

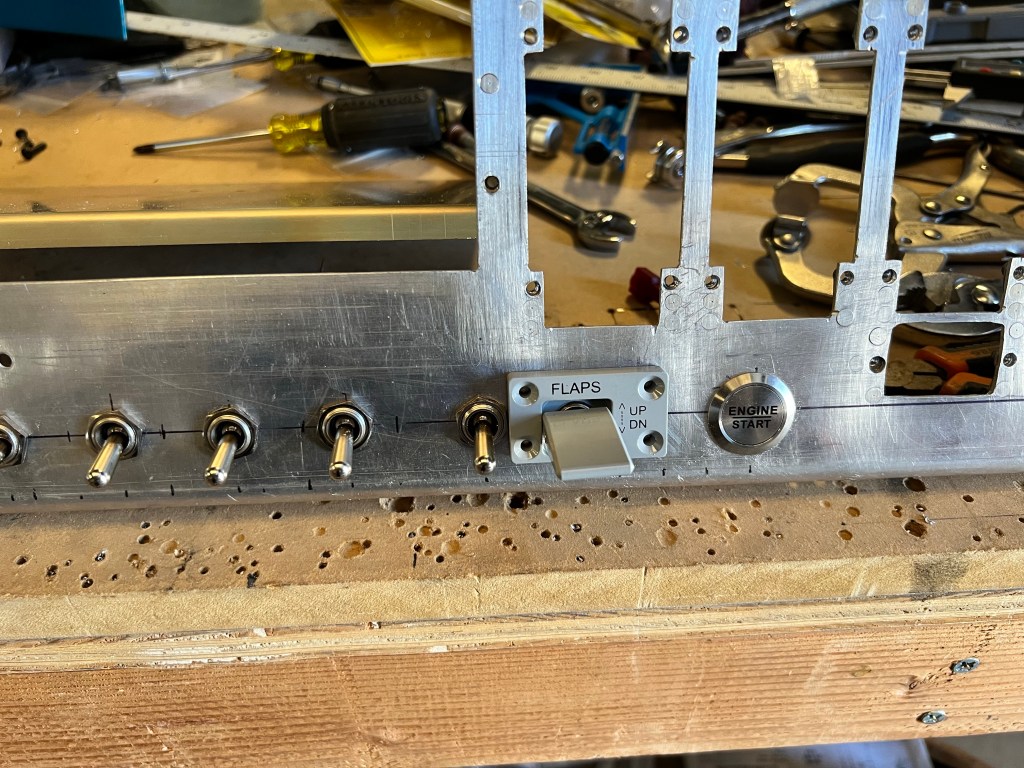

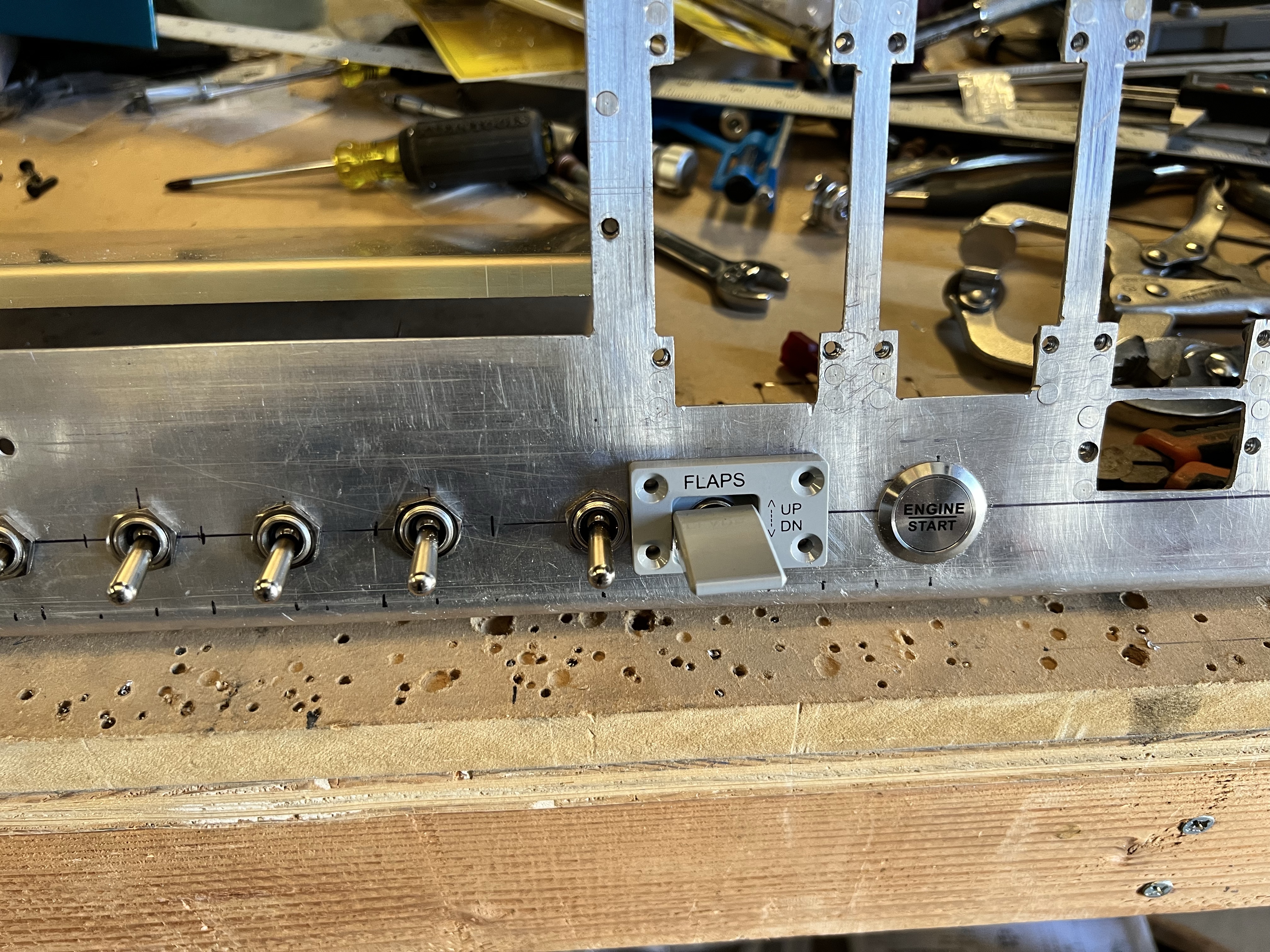

The boost pump switch is right up against the flap bracket. I may not use this given the proximity to the switch. It’s all removable, so we’ll see.

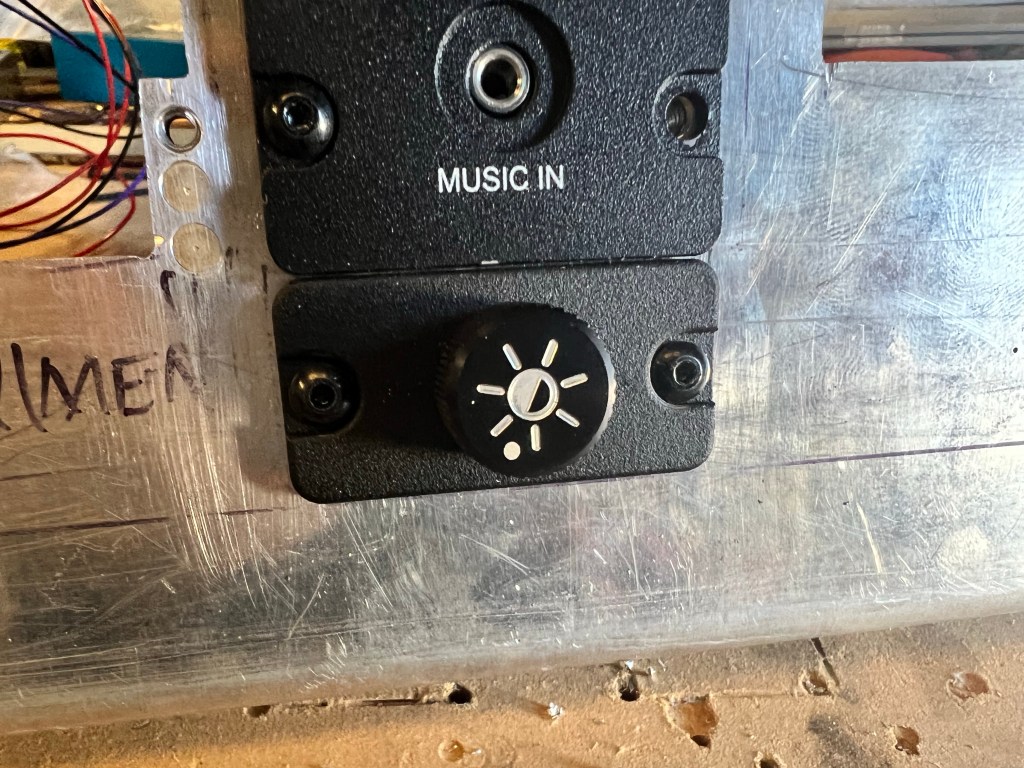

I also installed the Dynon dimmer knob, and the dedicated IDENT button. The ident function is useful to have a dedicated button for so I don’t have to navigate the display menus. Similarly with the dimmer. Even though the system has light detection and auto adjusts the brightness, I like to have finer control.

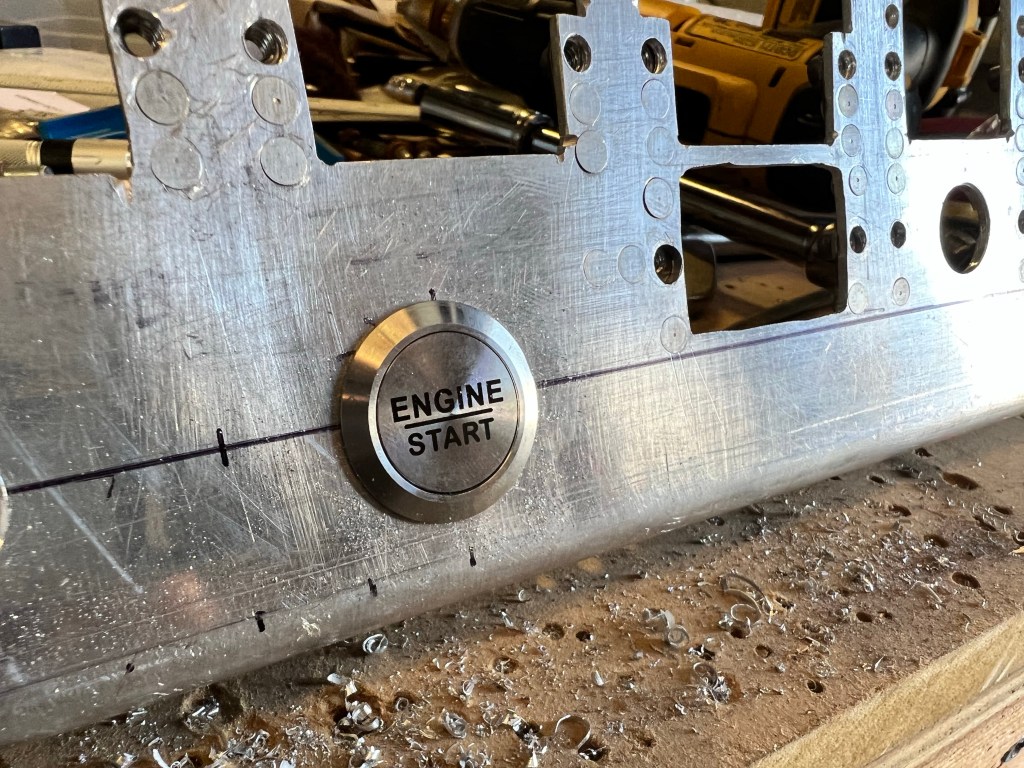

The engine start button is a very high quality push button. It’s extremely satisfying to press. Can’t wait to fire up the engine with this!
