Radio

This evening I received an order with my new Bose 6-pin connector cord. I decided to use the Lemo style plugs on my plane rather than the GA plugs. The ship power for the Bose A20s is just so much more convenient.

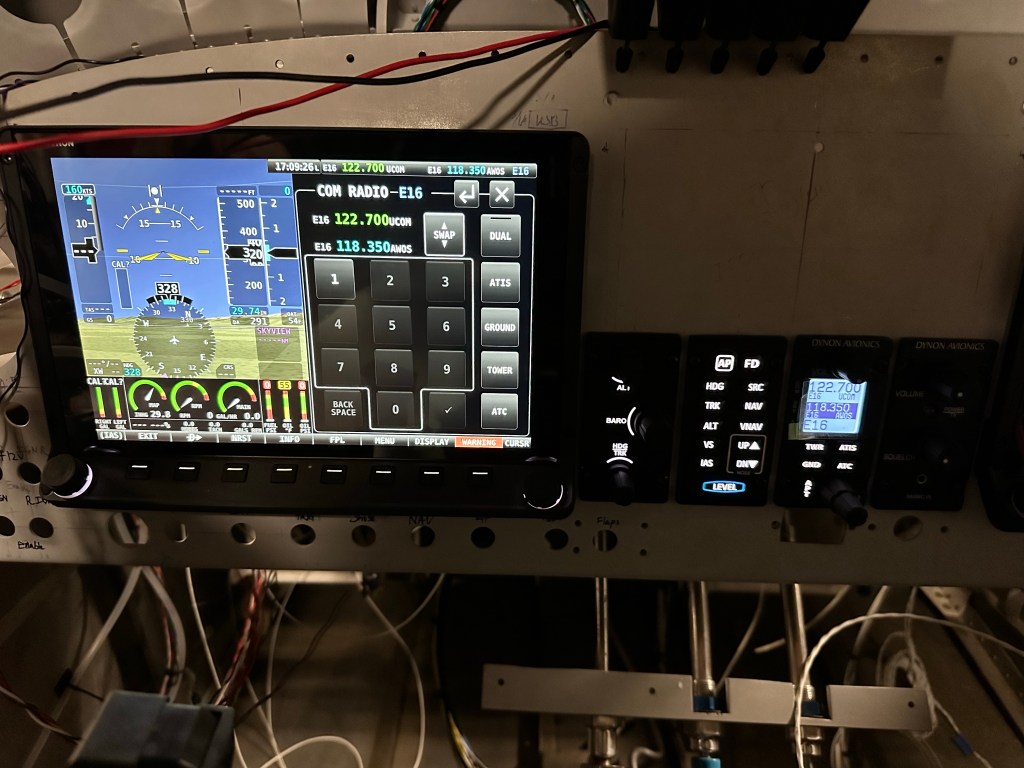

I temporarily powered my Efis, radio and intercom to check all the wiring with the headphones.

Successful transmit and receive functionality

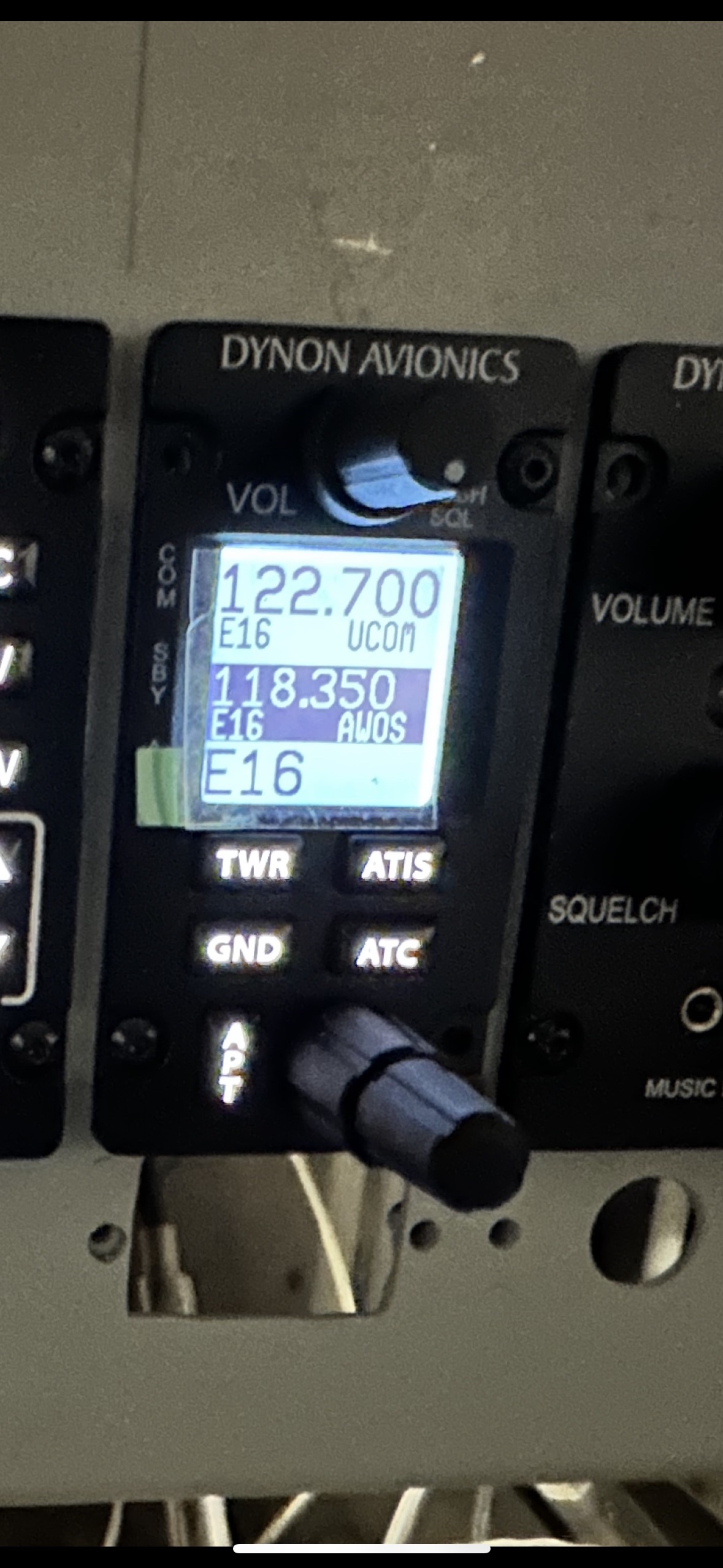

I was able to tune the AWOS to verify reception. Crystal clear. I then checked on the local traffic frequency with my handheld radio and everything functioned normally. A helicopter pilot happened to pass through and was able to verify my transmitting capabilities. The antenna is on the underside of the plane, and being inside the hangar I didn’t expect good quality but it seemed work okay, no static or anything.

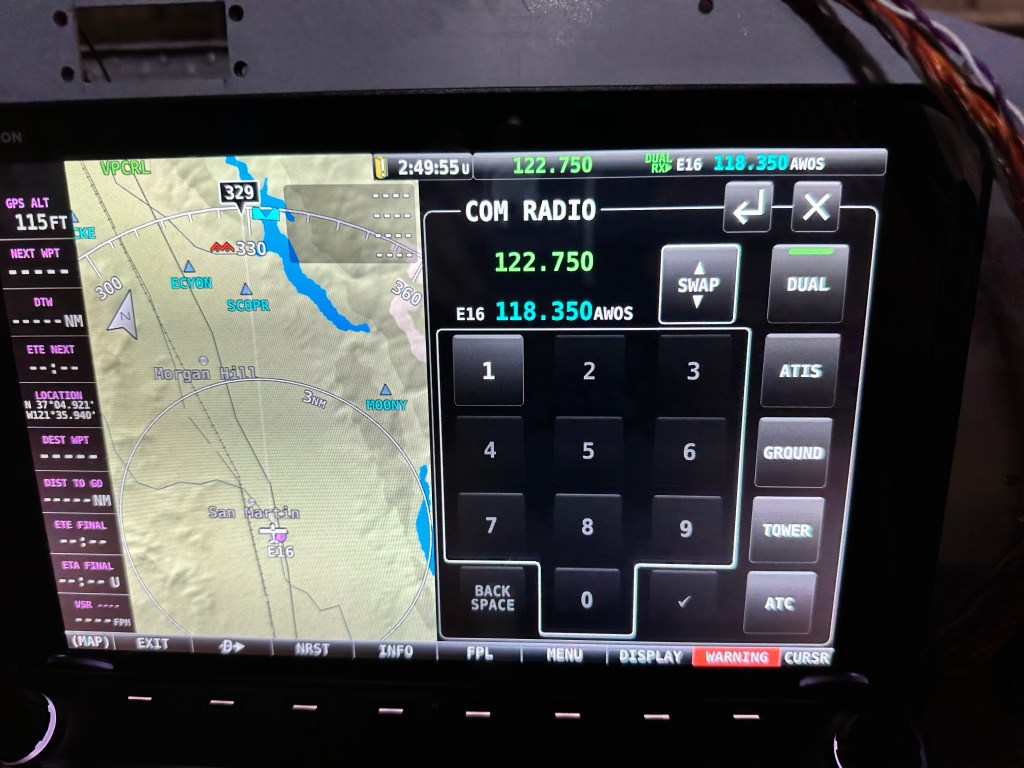

Radio functions

I’ve been making a lot of progress on all the avionics wiring and power circuitry as well. I plugged my laptop into the VPX and configured it with my specific setup. I also verified the PPS with the master switch on I was detecting 12V on the Main output.

Updating the databases and software

All the major systems have been installed and individually component tested. I’m now beginning to do the subsystem testing and slowly adding additional components. Once I finish manually verifying the power pins on the VPX, I’ll plug all the connectors in and have the VPX supply power directly allowing me to test the switches and full circuits.

Checking the radio functions

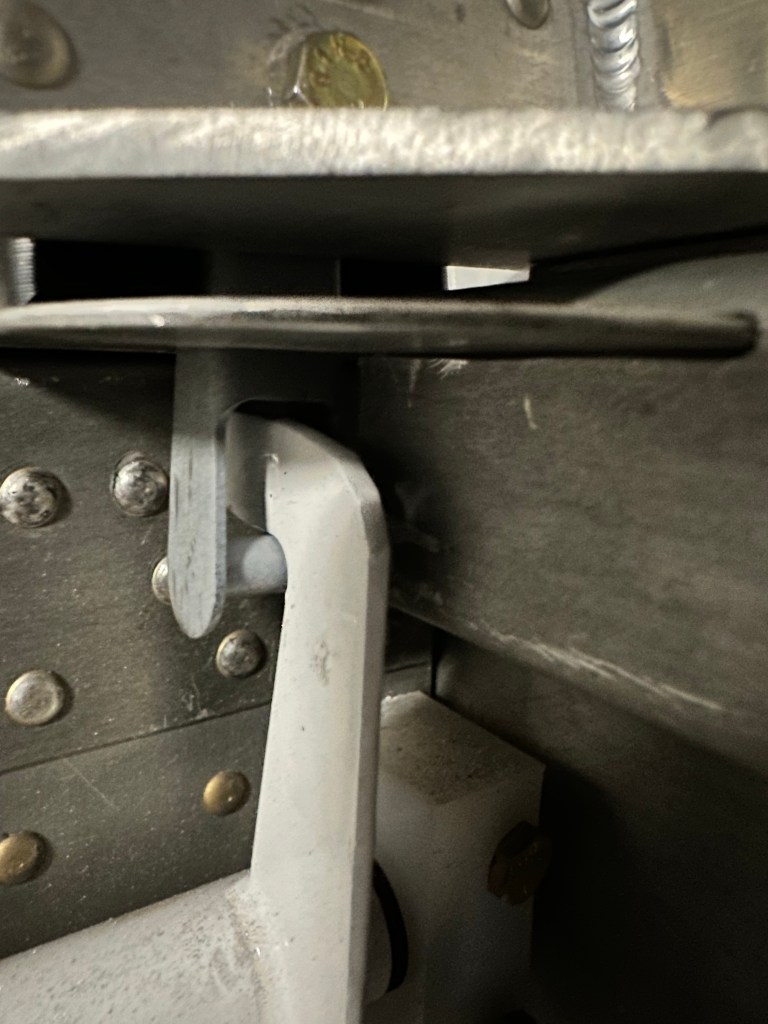

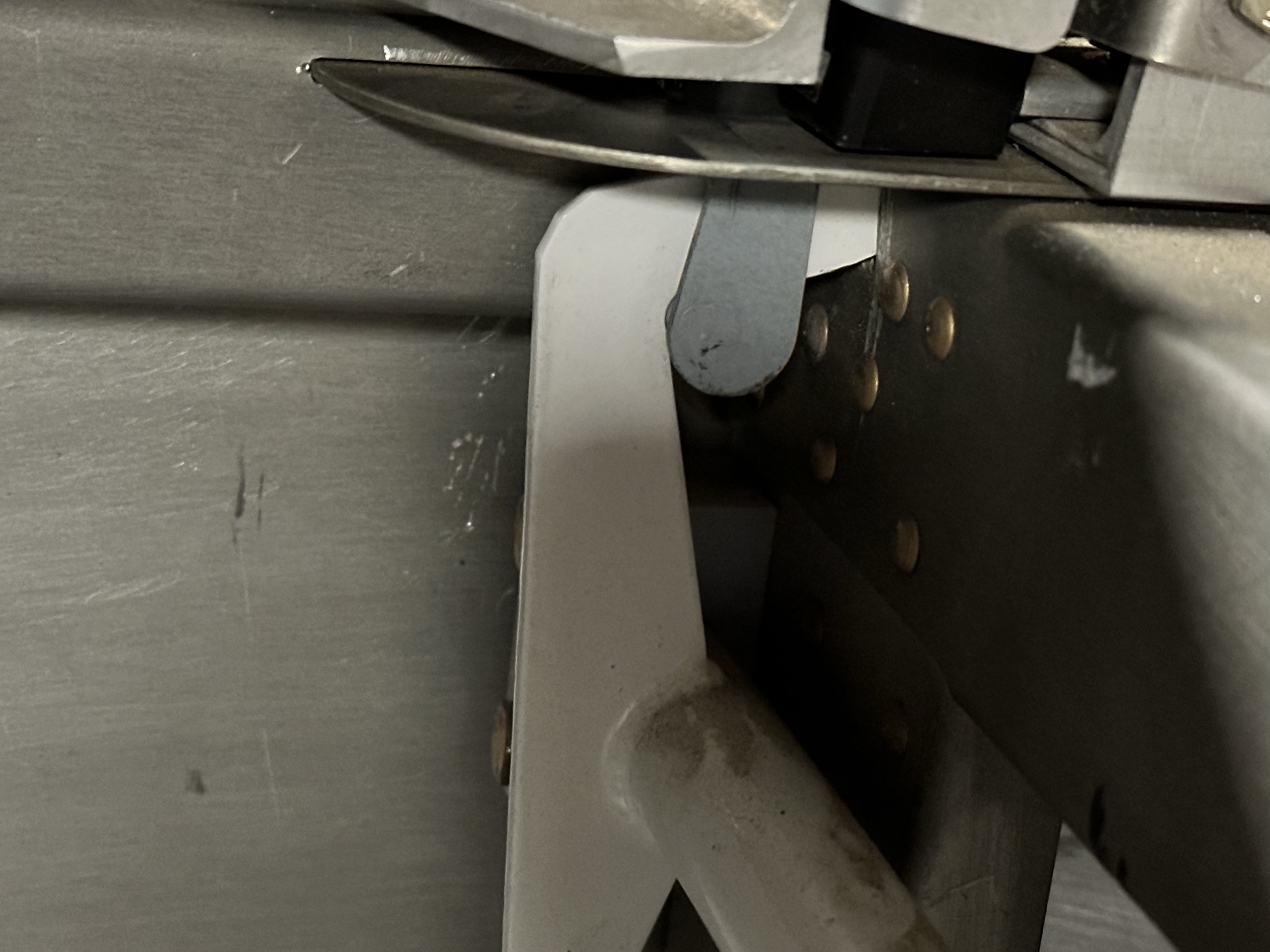

I also finished installing the latch fingers on the canopy frame and verified the appropriate clearances around the fuselage and roll bar.

Now that the frame is fully riveted it’s time to prime and paint the interior, and then mask the frame where the canopy will go and paint the dashboard a flat black. Now that we’ve gotten through some of the biggest rain storms California has seen in a while, I’m hoping to get that knocked out soon.

Radio
