This weekend I spent a few hours working on finishing up the canopy frame and sub panel riveting. I focused on riveting the subpanel completely to the fuselage to make sure that when I do final fittings of the canopy frame, everything is rock solid.

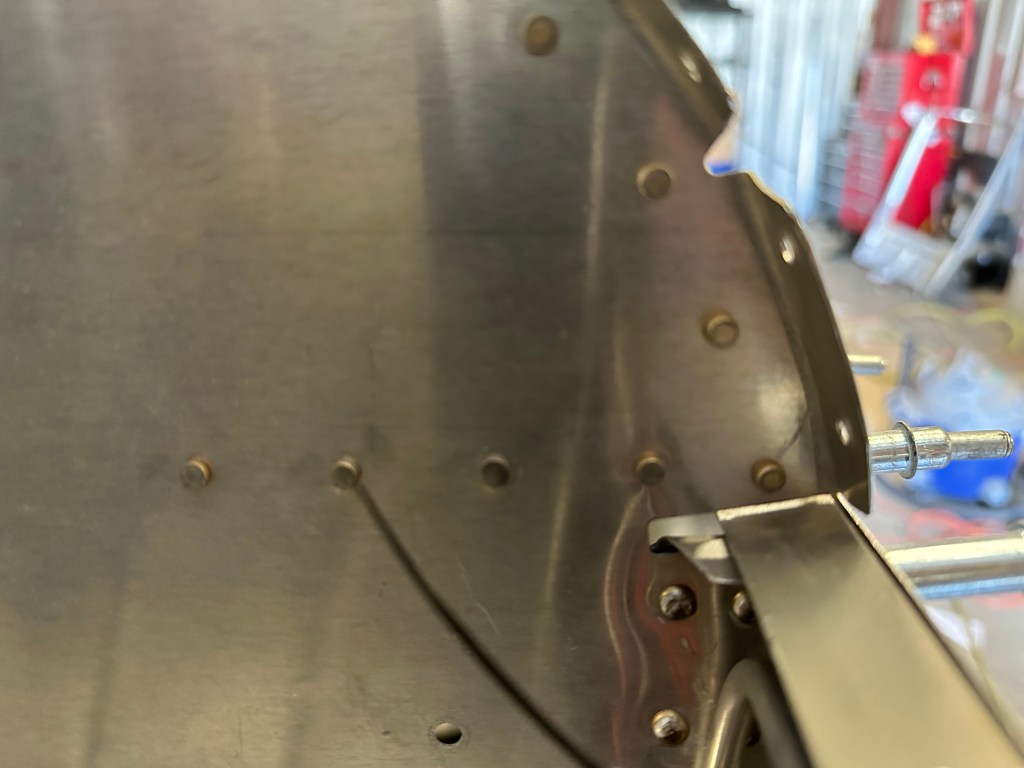

Here’s the left side attach of the sub panel to the fuselage. There are six more revets below this also attaching the sub panel to the fuse.

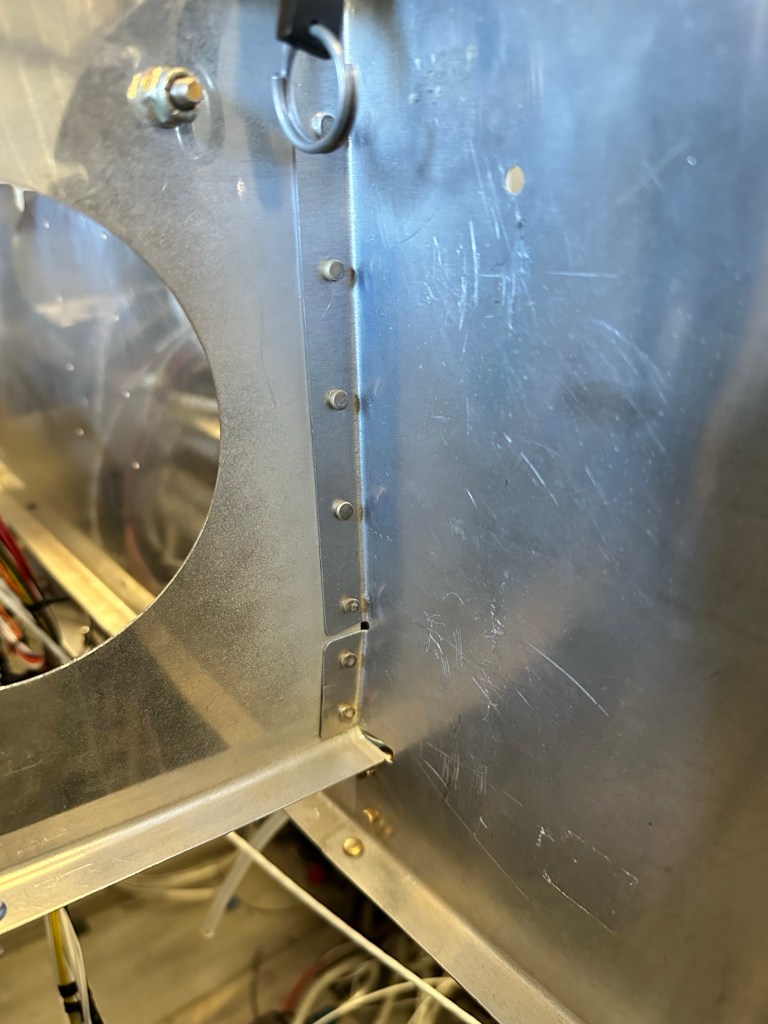

Here’s the forward part of the subpanel attached to the supporting rib. This is mirrored on the right side.

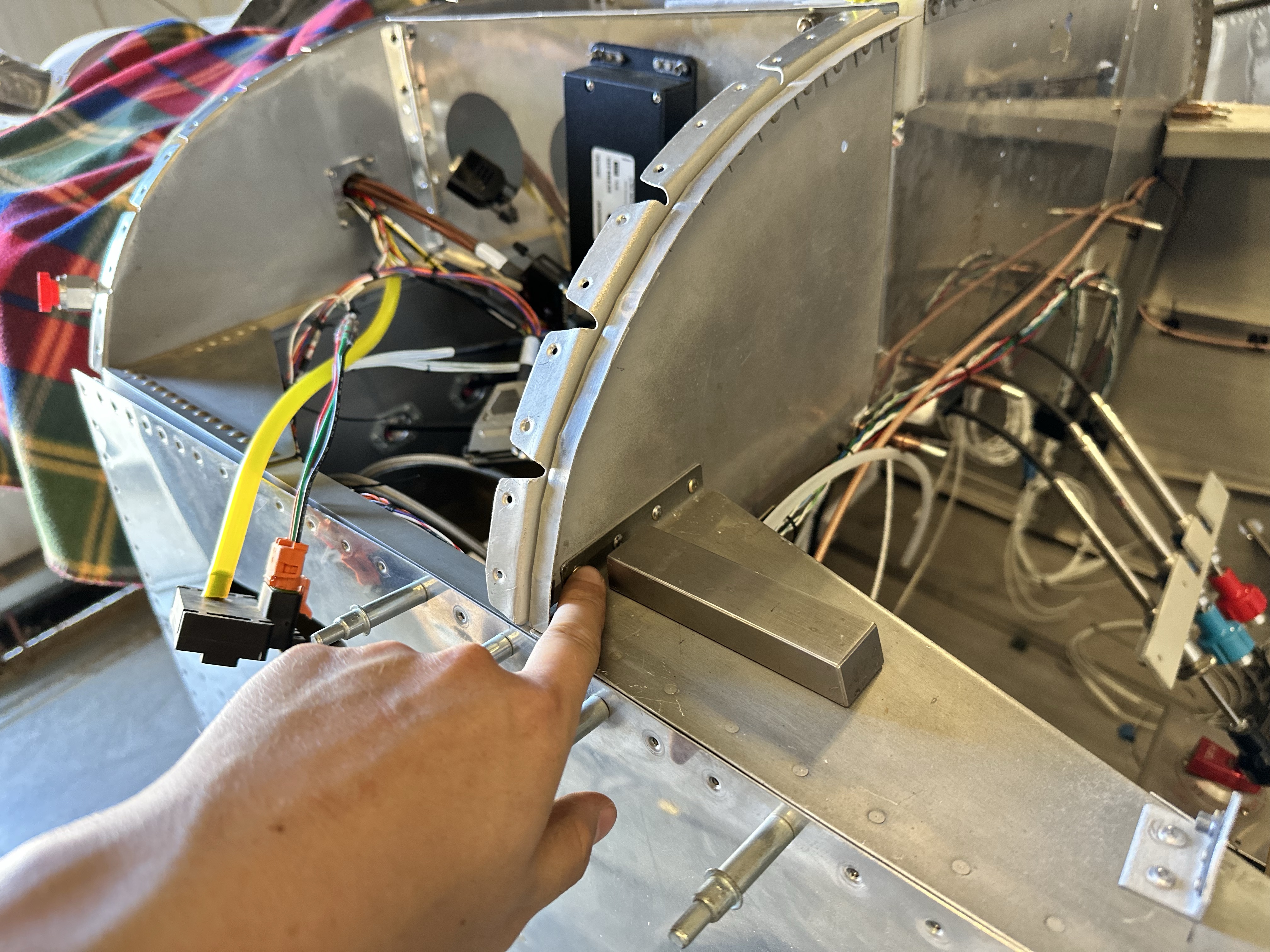

Here is the backside of the subpanel. Opposite of the first image. You can see some of the lower rivets near the fuel vent line on the bottom part of the image.

The sensor manifold on the firewall is now permanently attached as it is bolted to the supporting rib on the other side of the firewall. Now that it’s riveted in place this can remain attached.
