Cables and wires

Today I spent a few hours working on the ELT DIN wire, which is the power, ground, and GPS serial Rx. This allows the ELT to transmit GPS location.

I soldered the shielded 3 conductor wire to the connector, insulated it with some silicone, then soldered the short 4th wire, which is connected to a small LED to test the gps signal. Once that’s verified as working, that short wire gets cut and insulated against cable coming from the connector.

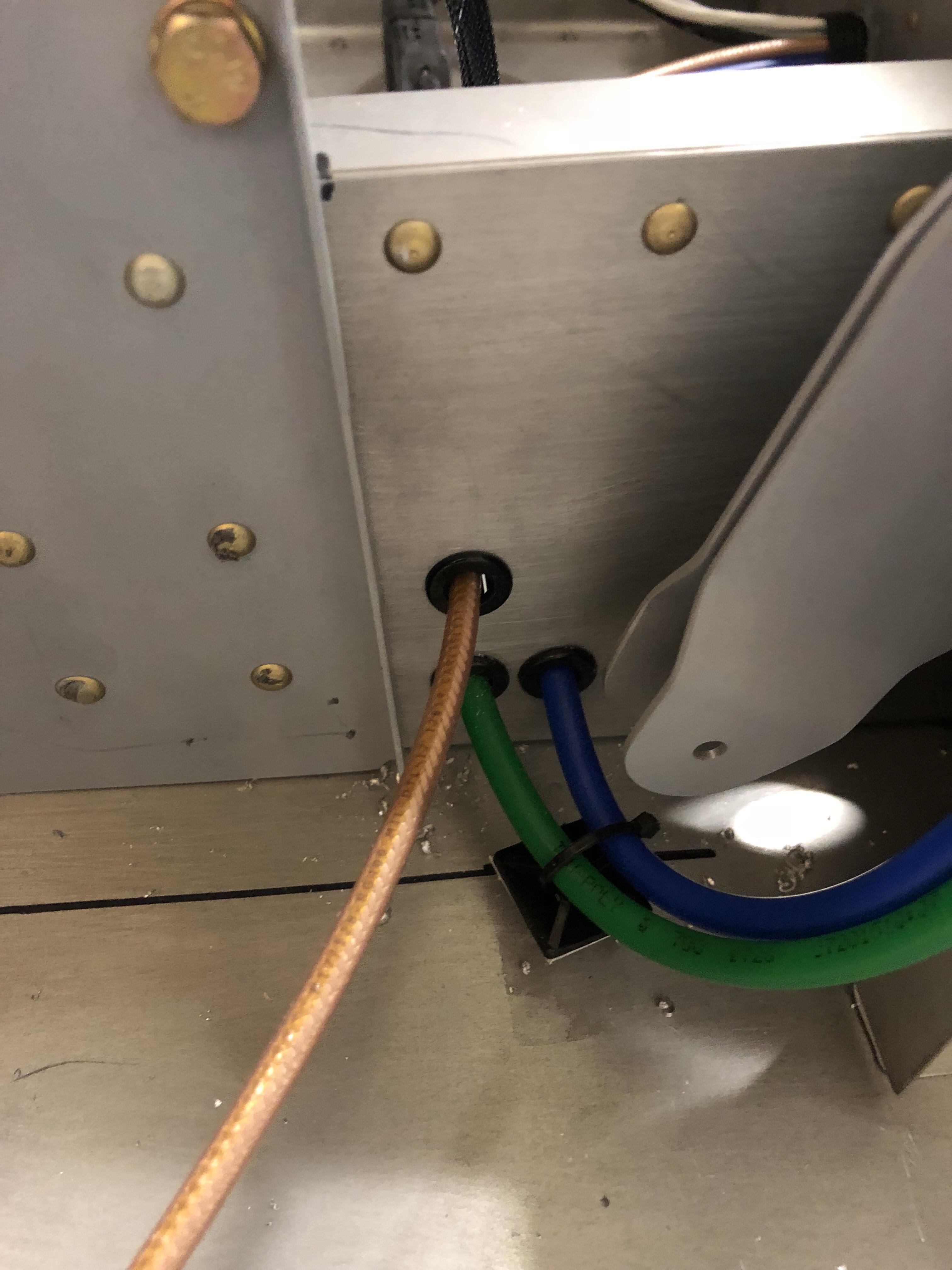

I also measured and cut the coax cable for the ADS-B antenna. It’s routed through the center rib near the pitot tubing.

Here you can see the elevator bell crank in its forward most position. Plenty of clearance to everything routed there, and considering the way I have things secured there is no relative motion between the antenna, pitot/AOA tubes, and the surrounding structure. I then crimped the BNC connector on the other end and connected it to the module.

I then spent some time experimenting with the Engine Module location and sensor harnesses. Once I install the rudder pedals I can rivet the panel sub structure and begin systems installation. It will be temporary, just to make the wire harness, then things will be removed for the interior painting that I will do.

I also confirmed and placed the order for my interior. I am going with Classic Aero Designs in Oregon. They have some really nice options and custom colors.

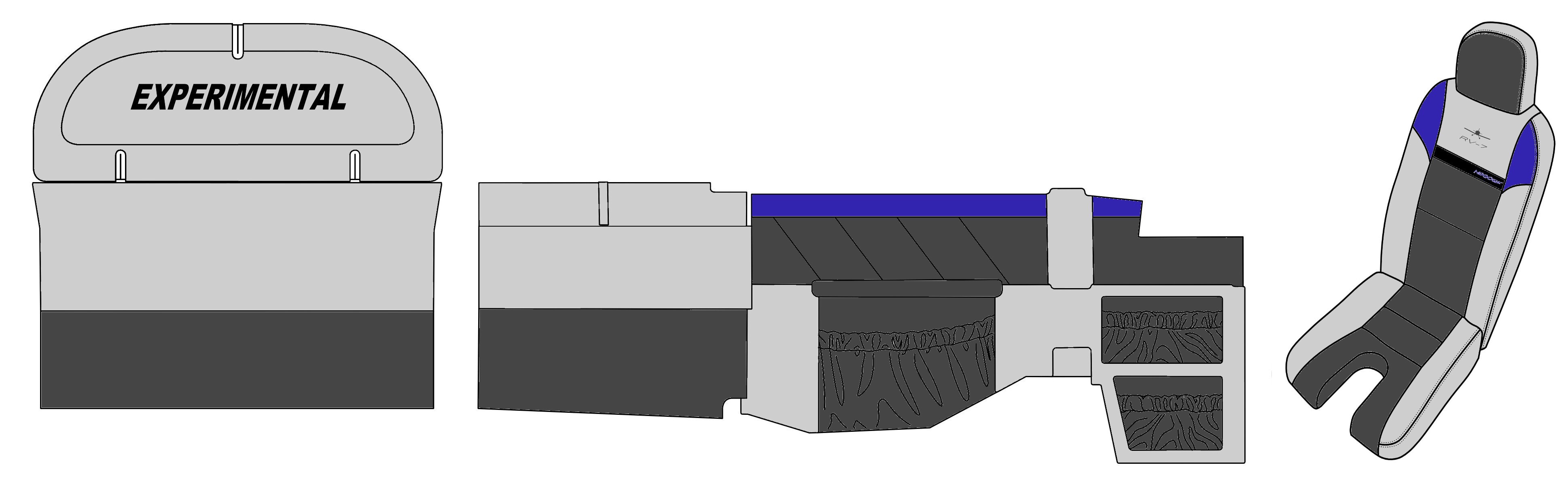

I am going with an all leather interior, with their Aviator seats, with the headrest option. The seats also have my N number embroidered and an RV-7 logo. I am very pleased with the service and support that I got from Classic Aero. A few back and forth emails and one phone call, and everything was figured out and the order placed. I am very excited about this!

Cables and wires
