Horizontal stab

Today was a big day, I spent about 8 hours on the stab.

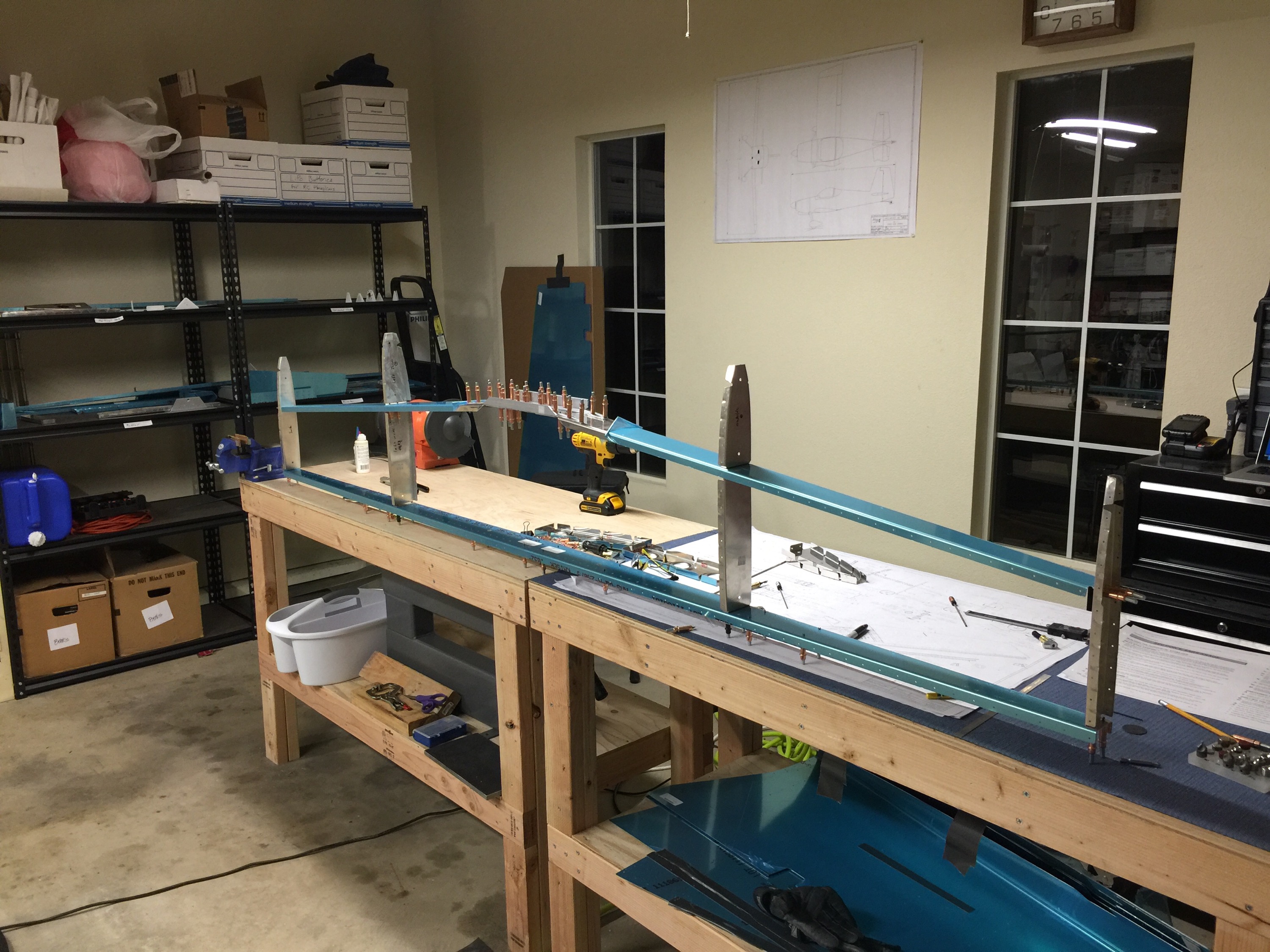

I finished smoothing out the front spar reinforcing bars and match drilling everything to the spars, along with the spar doublers.


I then clecoed the Stab skeleton together, match drilled the rib holes to the spars and deburred the holes.


I then managed to get the skin all clecoed on to the frame, that was super hard to get it flush with the ribs, the aluminum is under-bent when it’s shipped.


I then clamped and marked the hole positions for the remaining spar holes and the inner ribs that have to be drilled to match the skin.

Overall it was a productive day, I’m still getting the hang of the part naming convention and the drawing call-outs. It’s only the second day, but I can see the progress which is a good sign!
